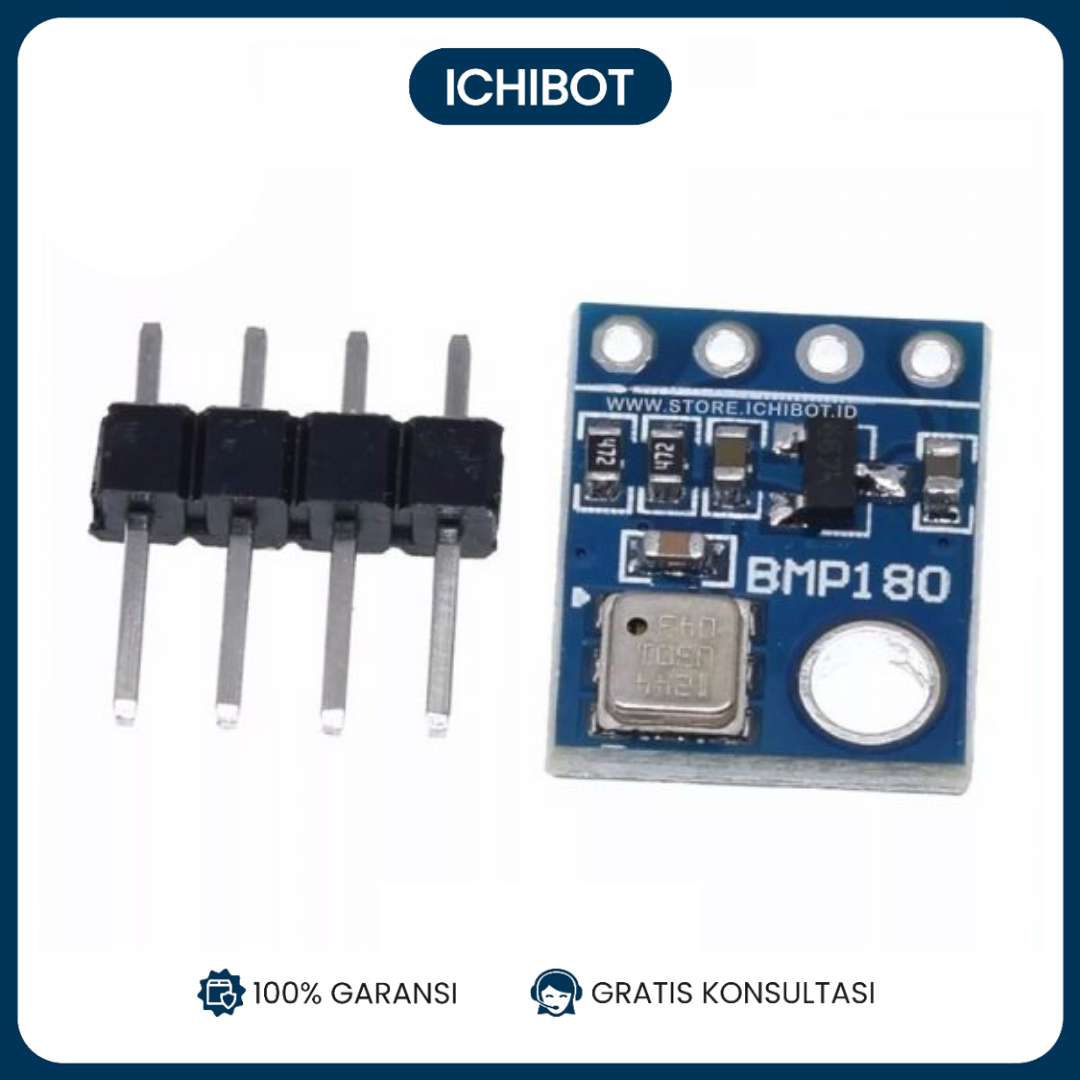

BMP180 adalah presisi tinggi, volume kecil, konsumsi energi rendah tekanan sensor dapat diterapkan di perangkat mobile
Kinerja yang luar biasa, mutlak akurasi minimum bisa mencapai 0.03 hPa dan konsumsi daya Sangat rendah, hanya 3μA
SPESIFIKASI
- Pressure range: 300 ~ 1100hPa (altitude 9000m ~ -500m)
- Power supply voltage: 1.8V ~ 3.6V (VDDA), 1.62V ~ 3.6V (VDDD)

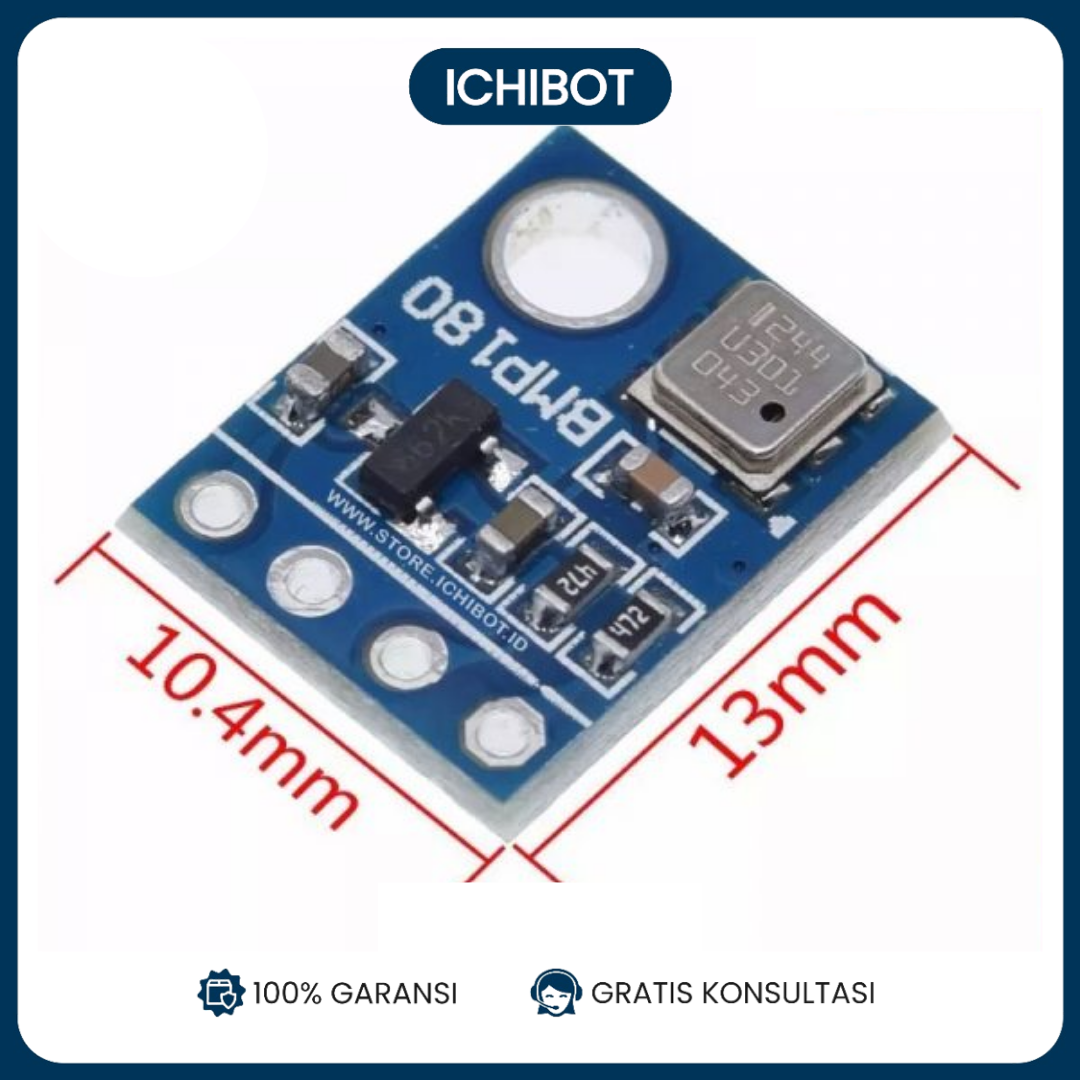

- LCC8 package: Lead-free ceramic carrier package (LCC) nSize: 3.6mmx3.8×0.93mm
- Low power consumption: 5μA in standard mode nHigh accuracy : the low power mode, resolution 0.06hPa (0.5 meters)
- In high linear mode, the resolution is 0.03hPa (0.25 meters)

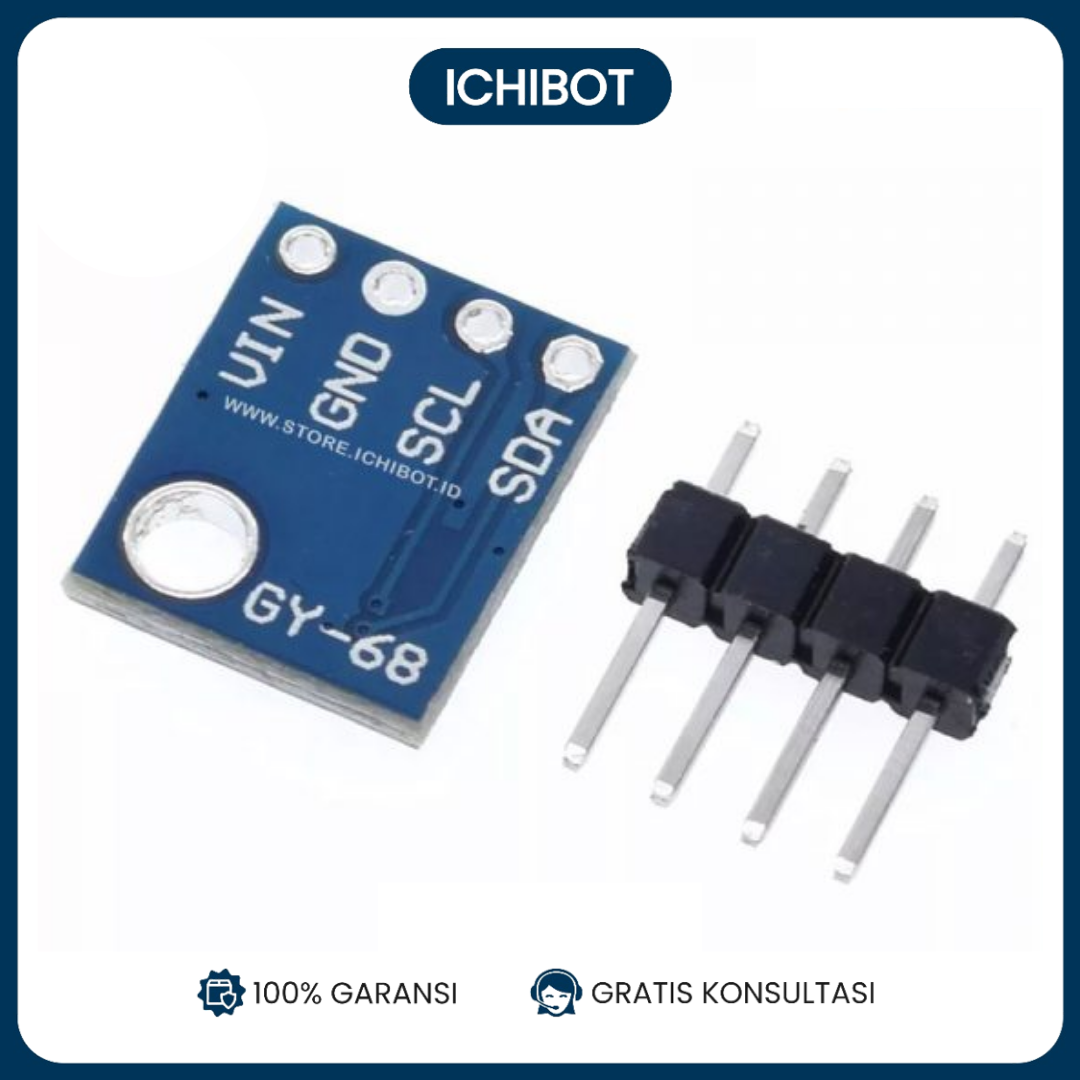

- With temperature output I2C interface
- Temperature compensation nLead-free, RoHS compliant
- MSL 1 response time: 7.5ms
- Standby current: 0.1μA
- No external clock circuit required ntypical application: GPS precise navigation (dead reckoning, upper and lower bridge detection, etc.)
- Indoor and outdoor navigation
- Monitoring of leisure, sports and medical health
- Weather forecast
- Vertical speed indication (rising / sinking speed)
- Fan power control
