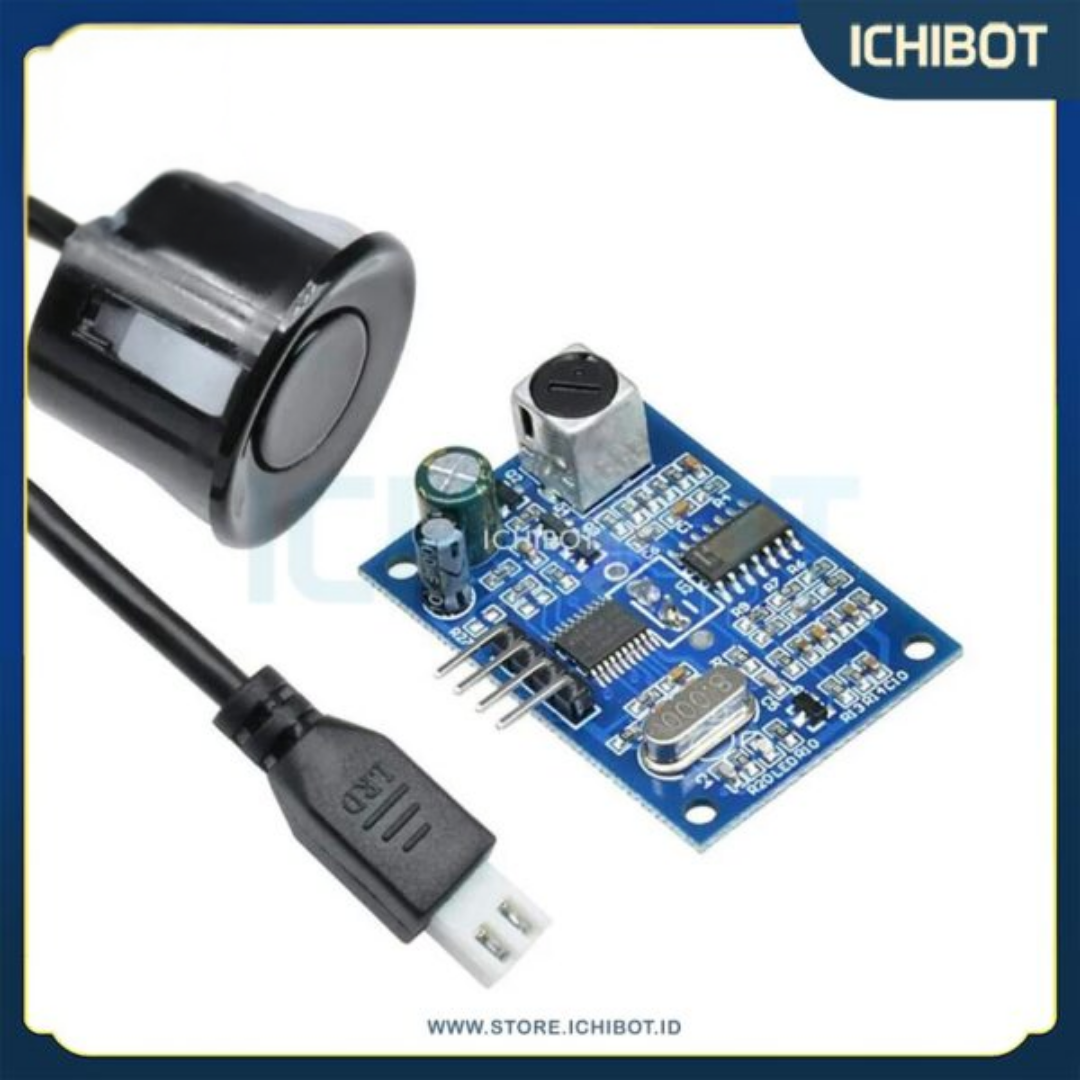

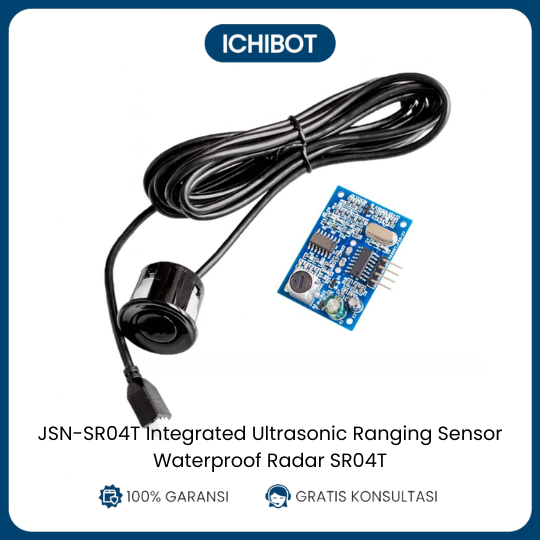

JSN-SR04T Integrated Ultrasonic Ranging Sensor Waterproof Radar SR04T

Name: JSN-SR04T Integrated Ultrasonic Ranging Sensor Waterproof Radar SR04T
SKU: RK12-M02
Availability: OutOfStock

Rp60.000

Tahan air Modul Ultrasonik JSN-SR04T / AJ-SR04M Tahan Air Terintegrasi Jarak Mengukur Transduser Sensor UNTUK Arduino

Sifat listrik:
1. Parameter listrik: JSN-SR04T
2. Tegangan operasi: DC 5V
3. Arus diam: 5mA
4.Total pekerjaan saat ini: 30mA
5. Frekuensi emisi akustik: 40khz
6. Jarak terjauh: 4.5m
7. Buta: 25cm
8. Kabel: + 5V (catu daya positif)
Trig (sisi kontrol) RX
Gema (penerima) TX
GND (negatif)
9. Resolusi: sekitar 0.5cm
10. Sudut: kurang dari 50 derajat
11. Suhu kerja: -10 ~ 70 Celsuis
12. Suhu penyimpanan: -20 ~ 80 Celsuis

Fitur Produk
1. Ukuran kecil, mudah digunakan
2. Tegangan rendah, konsumsi daya rendah
3. Akurasi Tinggi
4. Kuat anti-macet
5. Terintegrasi dengan kawat tertutup probe tahan air, cocok untuk basah, kesempatan pengukuran yang keras

Aplikasi
1. Jarak horisontal;
2. Menghindari rintangan, kontrol otomatis;
3. Objek mendekati, ada yang dirasakan
4. Kontrol lalu lintas;
5. Keamanan, kontrol industri;
6. Kecerdasan buatan, dan penelitian

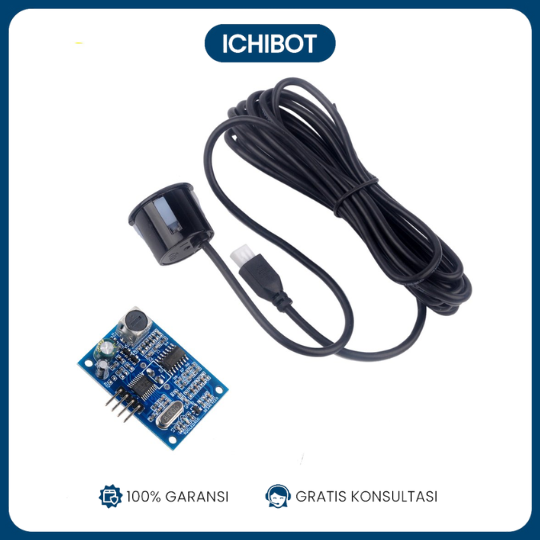

Line length 2.5 meters

How to set the detection distance? ?

Microcontroller reading

The trig port has a pull-up resistor. When initializing the program, set the IO port low first, and then trigger it with high power.

By default, version 3.0 is shipped.

Now for similar products, our blind spot data is stable and does not jump, while other products jump randomly.

Data download 1) Link: https://pan.baidu.com/s/1tC1axVvFIvcnx9kfFhIkww Extraction code: of31

2) Information link: https://pan.baidu.com/s/1EVTIt5YM7D94WYsdOHRUOA Extraction code: r23a Copy this content and open the Baidu Netdisk mobile app for more convenient operation.

Recently, a new version of SR04T-V3.0 has been launched, which solves the problem of random data jumps in the blind area and improves the stability of the product. (We have been working hard) **** The default delivery is pulse width output

JSN-SR0T4-V3.0 ultrasonic ranging module can provide non-contact distance sensing function from 21cm to 600cm , with ranging accuracy up to 3mm ; the module includes an ultrasonic sensor and control circuit that integrates transceiver and transmitter. The usage of mode one is compatible with our HC-SR04 module.

This product adopts an industrial-grade integrated ultrasonic probe design, is waterproof, has stable performance, and is compatible with all MCUs on the market. 1. This module has stable performance and accurate distance measurement. It is comparable to foreign ultrasonic ranging modules such as SRF05 and SRF02 . The module’s high precision, blind zone (20cm), and stable ranging are strong basis for this product to successfully enter the market.

ØProduct features:

1. Small size and easy to use;

2. Low voltage and low power consumption;

3. High measurement accuracy;

4. Strong anti-interference;

5. Integrated closed waterproof probe with wire, suitable for wet and harsh measurement situations

ØSpecification parameters :

	Pulse width output	Serial port output
Operating Voltage	DC : 3.0-5.5V
Working current	Less than 8mA
Probe frequency	40kHz
furthest range	600cm
nearest range	20cm
Long range accuracy	±1cm
resolution	1mm
Measure angle	75 degrees
Input trigger signal	1. TTL pulse above 10uS _ 2. Serial port sends command 0X55
Output echo signal	Output pulse width level signal, or TTL

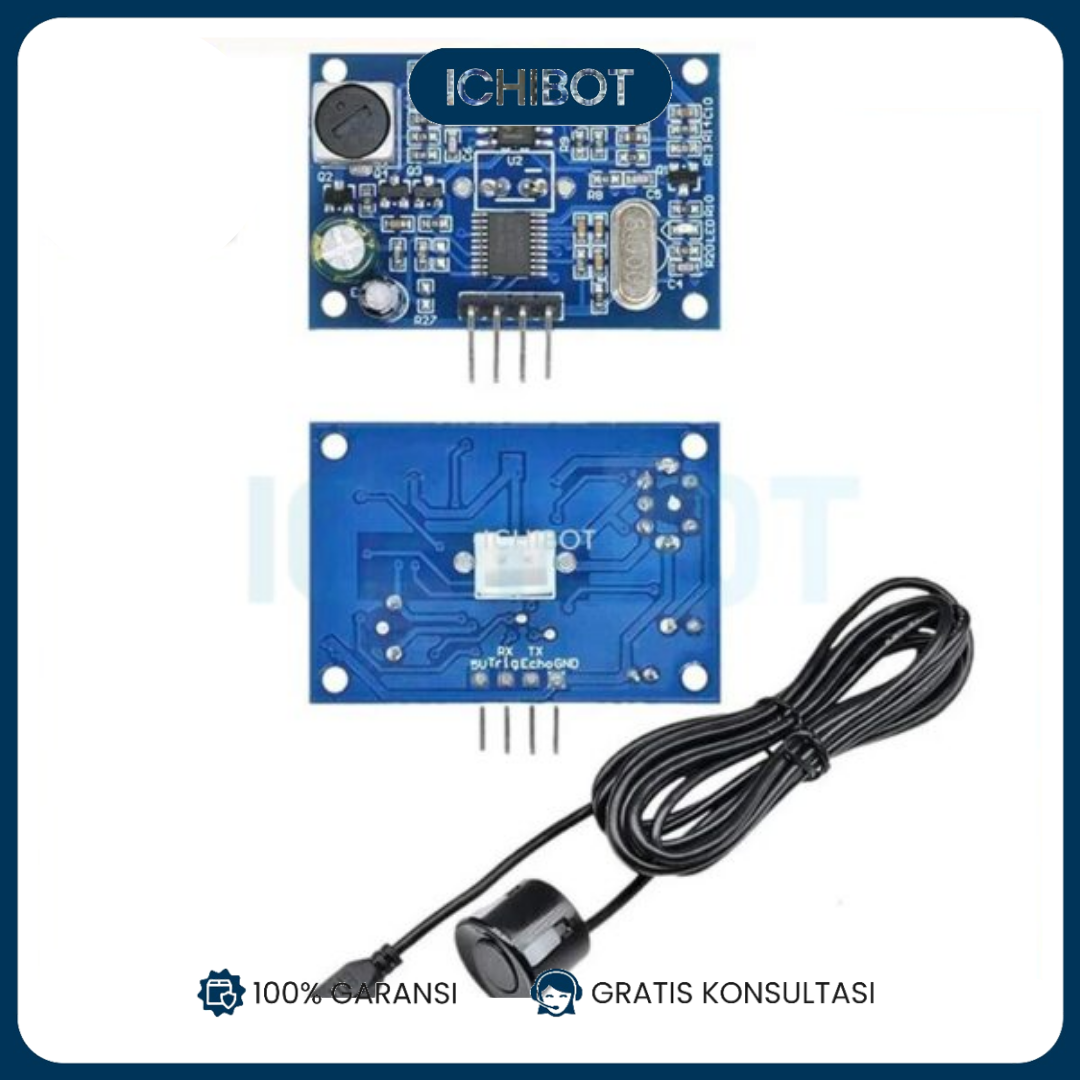

Wiring	3-5.5V ( positive pole of power supply ) Trig ( Console )RX Echo (output) TX GND (negative pole of power supply
Product Size	L42W29H12 mm
Operating temperature	-20 ℃—+70℃

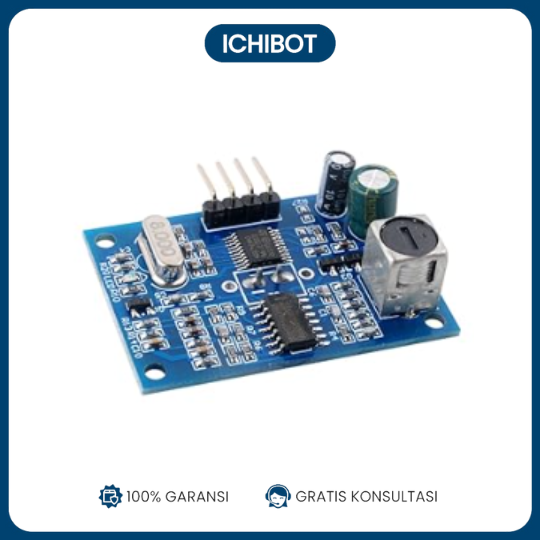

Product color	PCB board is blue
