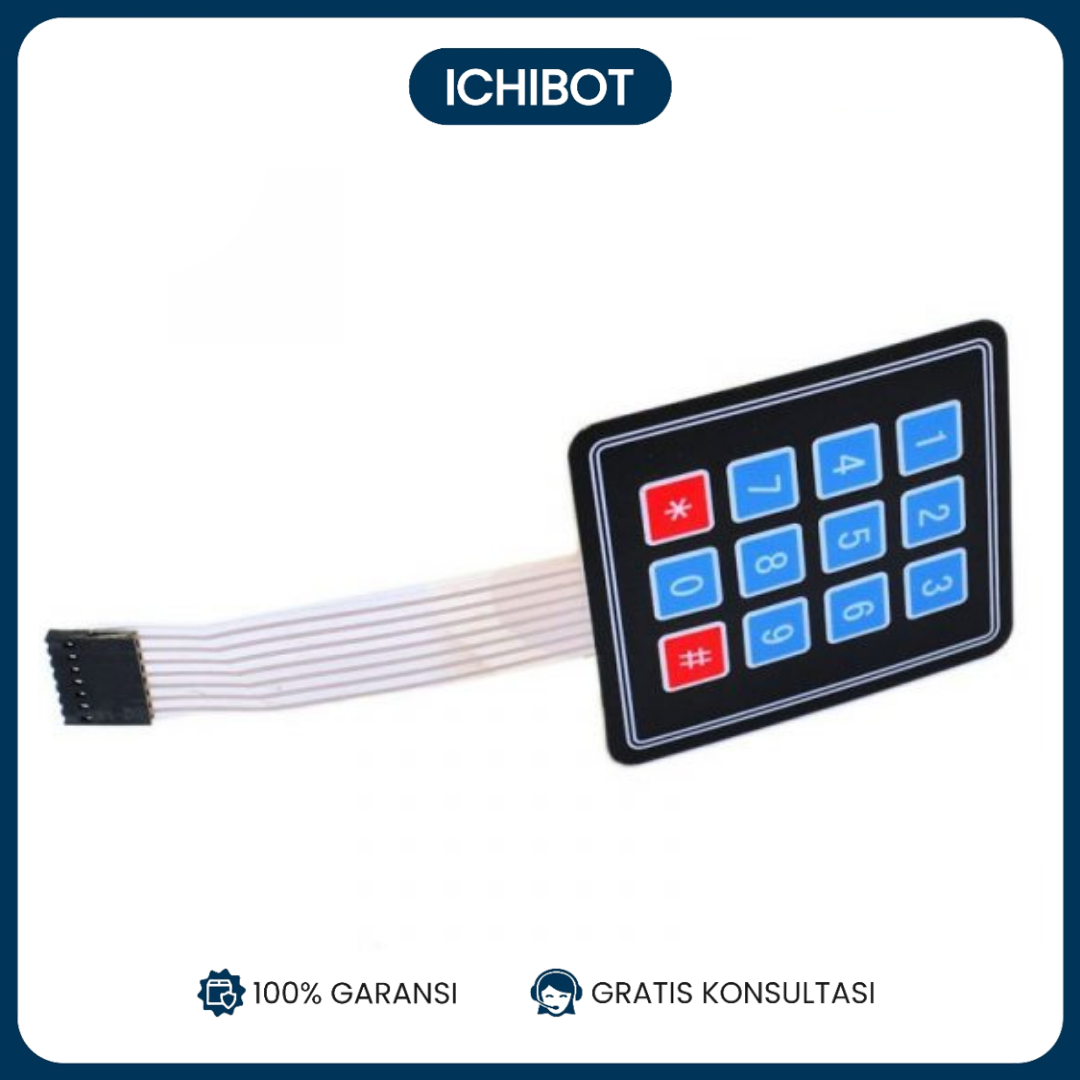

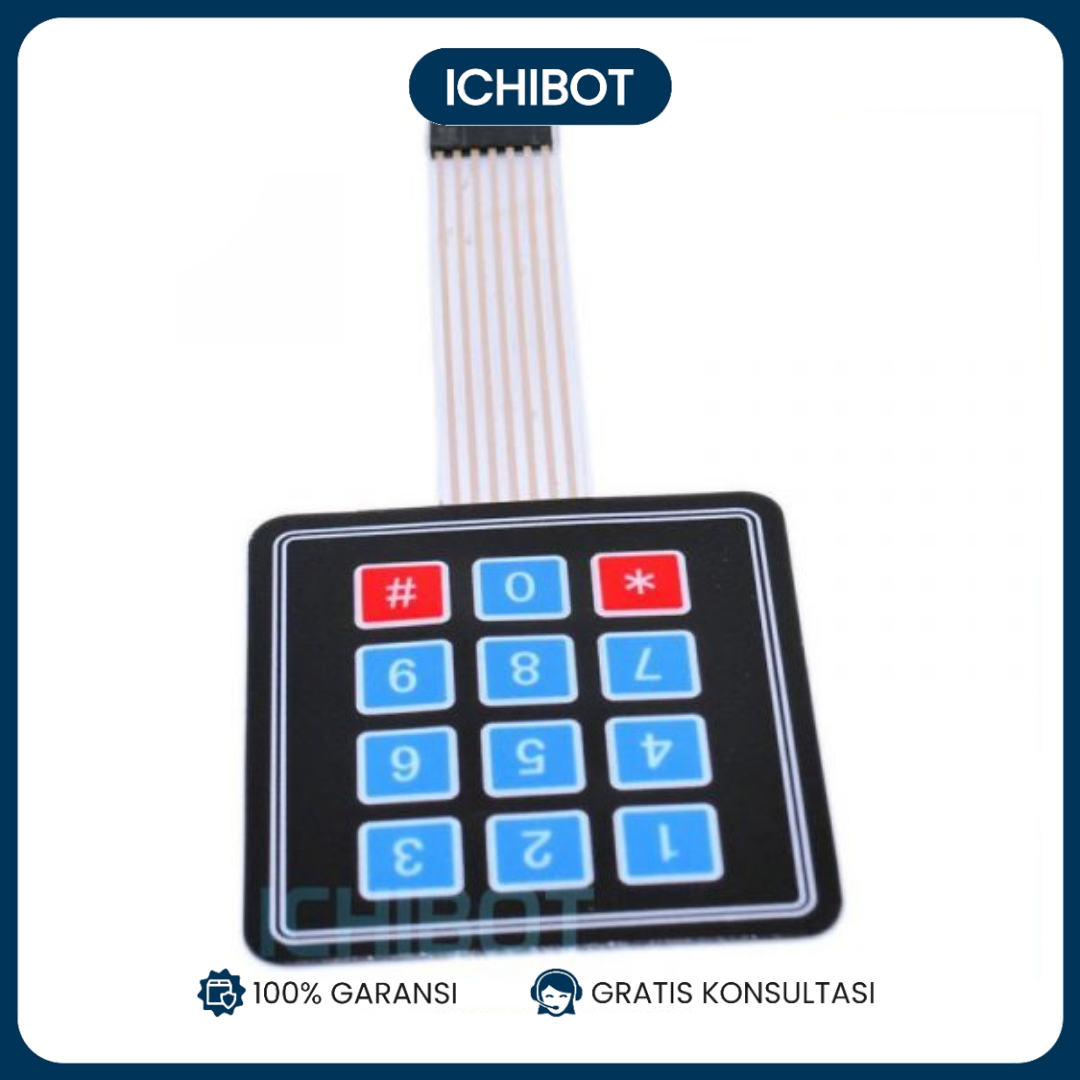

3*4 kunciMembran Switch
3×4 matrix keyboard:

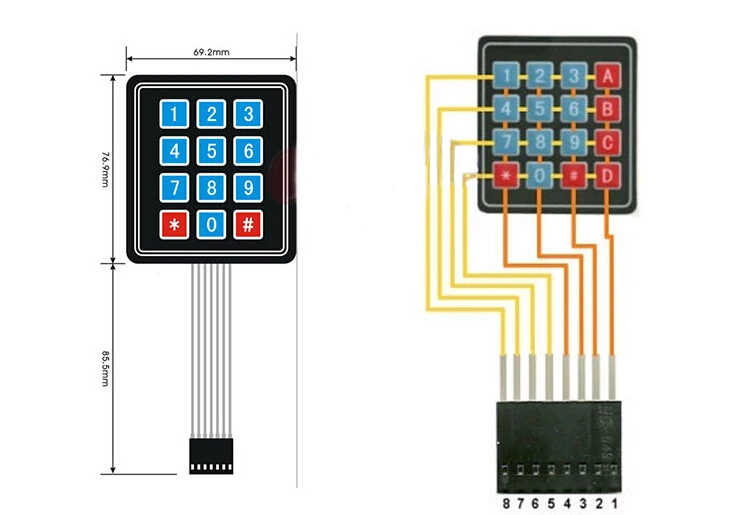

Pad Size: 69.2 x 76.9 x 0.8mm
Cable Length: 3-1/3″ or 86mm (include connector)
Connector: Dupont 7 pins, 0.1″ (2.54mm) Pitch
Mount Style: Self-Adherence
Max. Circuit Rating: 35VDC, 100mA
Insulation Spec.: 100M Ohm, 100V
Dielectric Withstand: 250VRms (60Hz, 1min)
Contact Bounce: <=5ms
Life Expectancy: 1 million closures
Operation Temperature: -20 to +40 °C
