Spesifikasi :

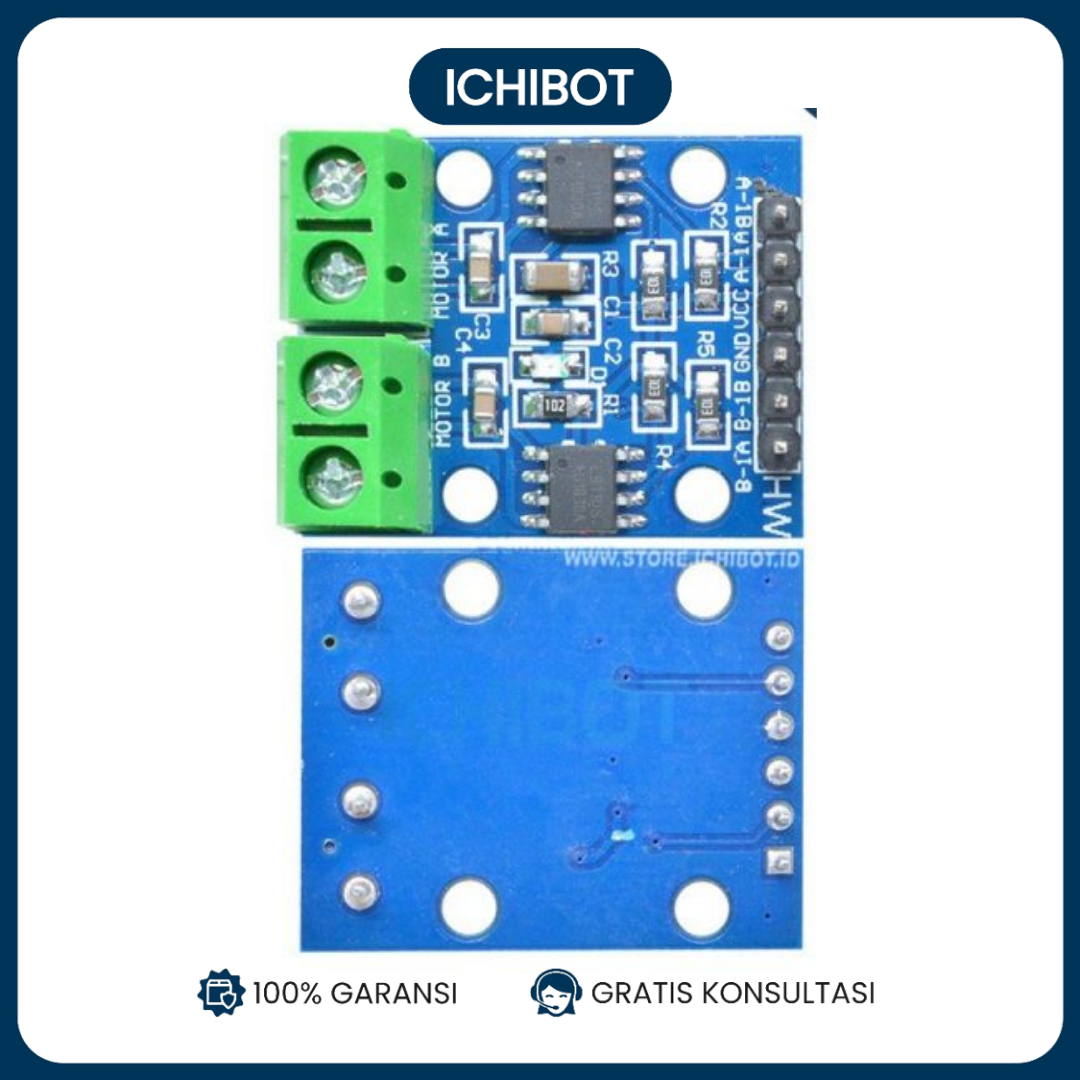

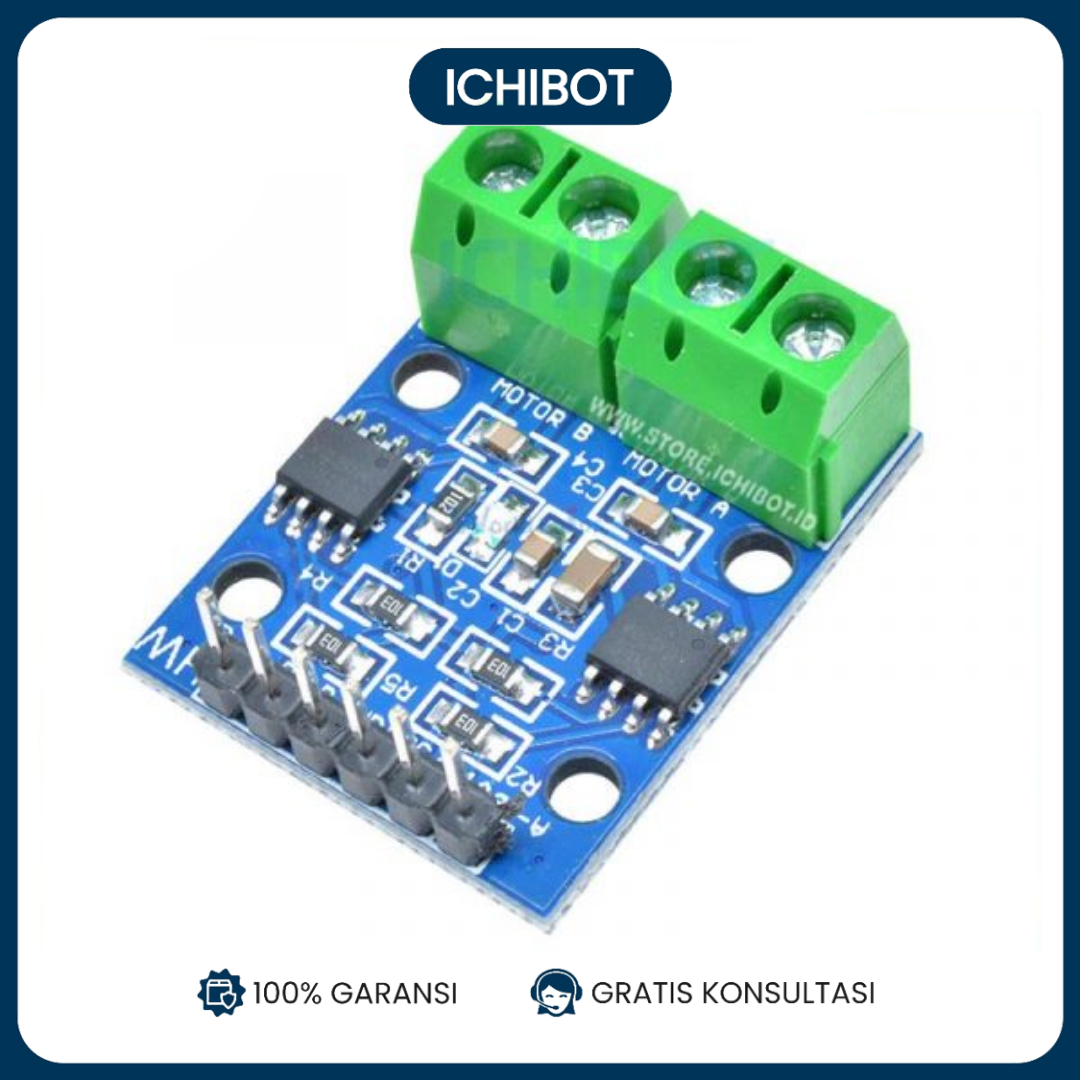

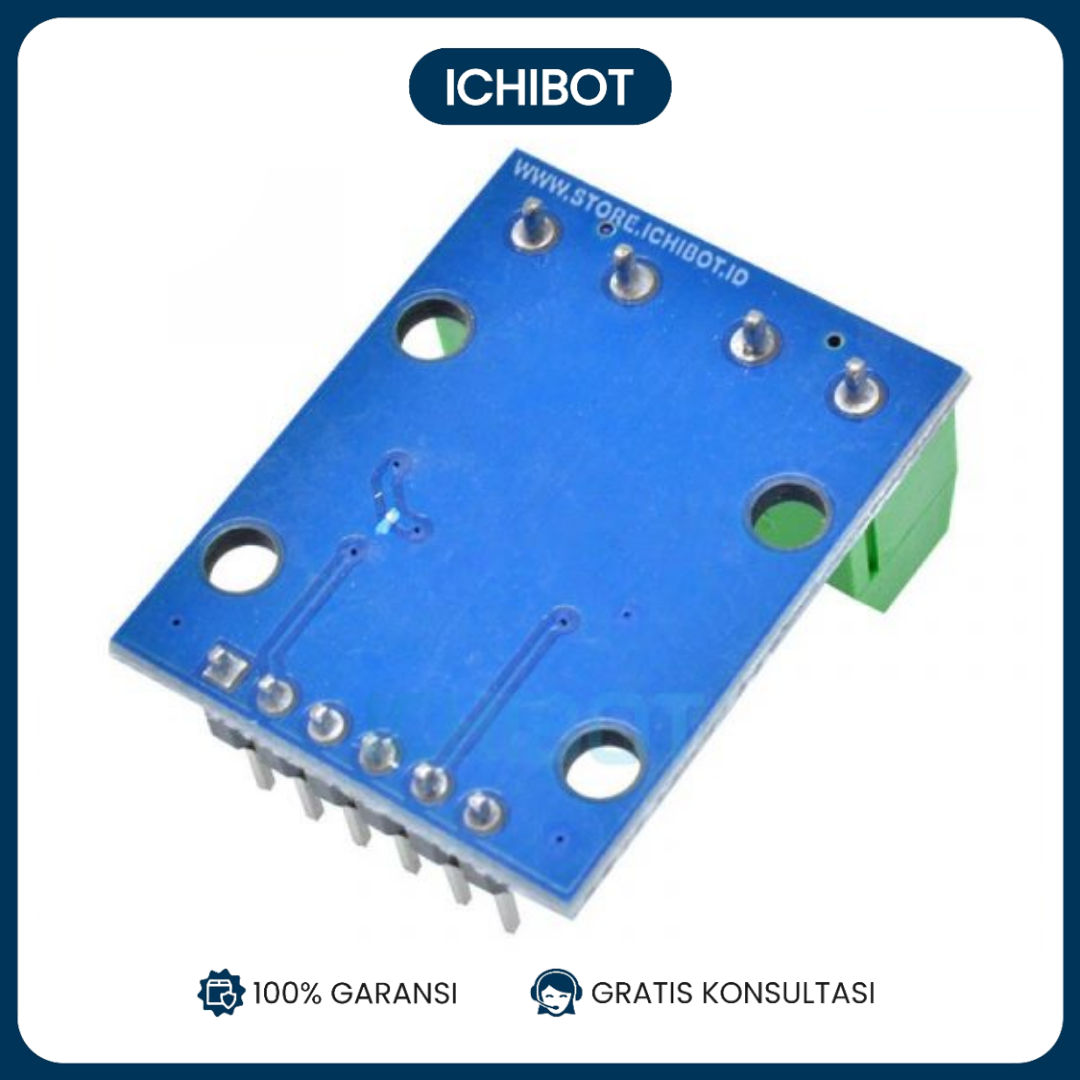

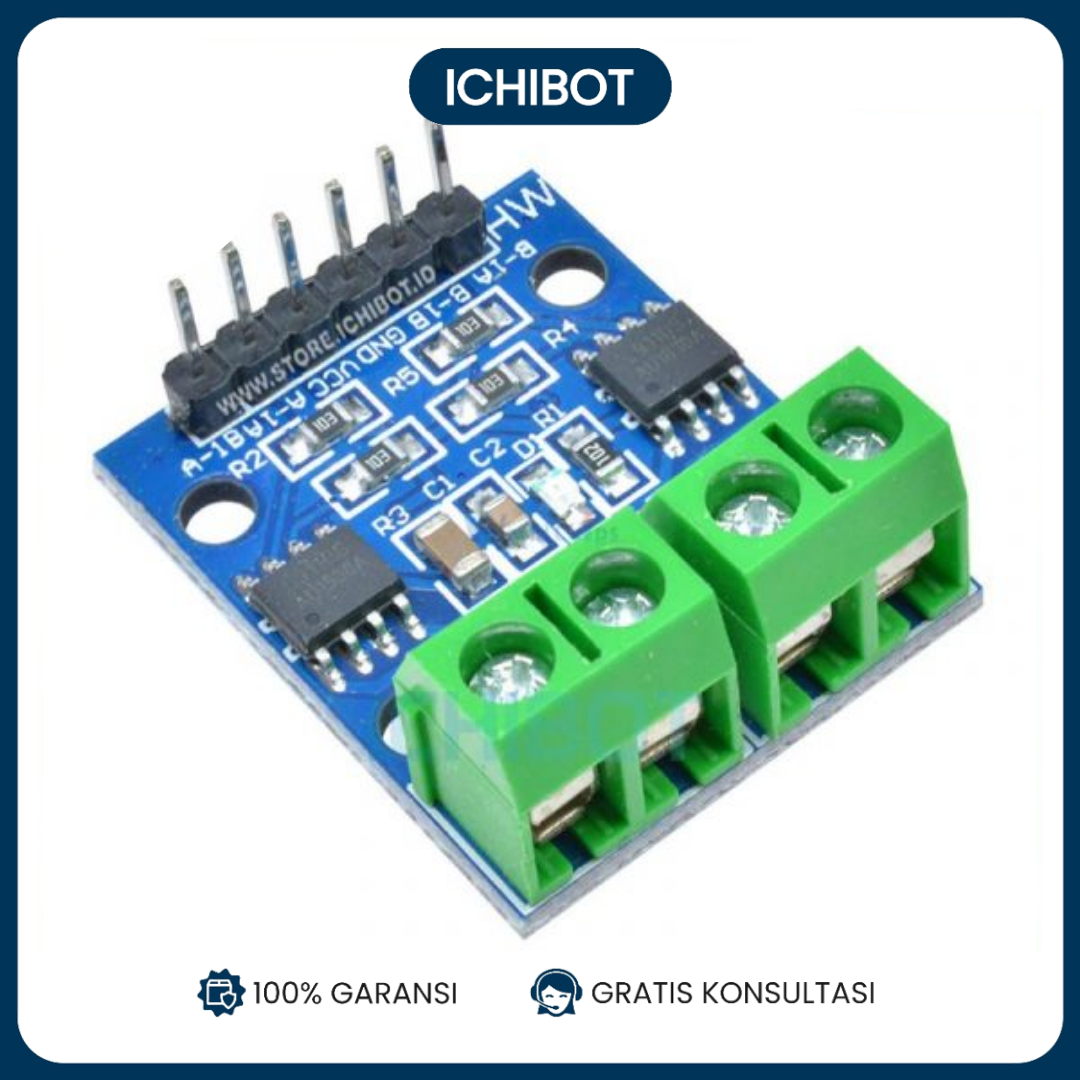

onboard two the L9110S motor control chip
the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor
the module input voltage :2.5-12V
the 800mA continuous current output capability per channel
1. Low static work current
2. Power supply voltage: DC2.5-12V
3. Each channel has 800mA continuous current output
4. Low saturation pressure drop
5. TTL/CMOS output level compatible, can be connected directly to the CPU
6. Output built-in clamping diode, apply to the perceptual load
7. Control and drive integrate in IC
8. Have pin high pressure protection function
9. Working temperature: 0-80 °
10.Size:29.2(mm)x23(mm)
