Introduction:

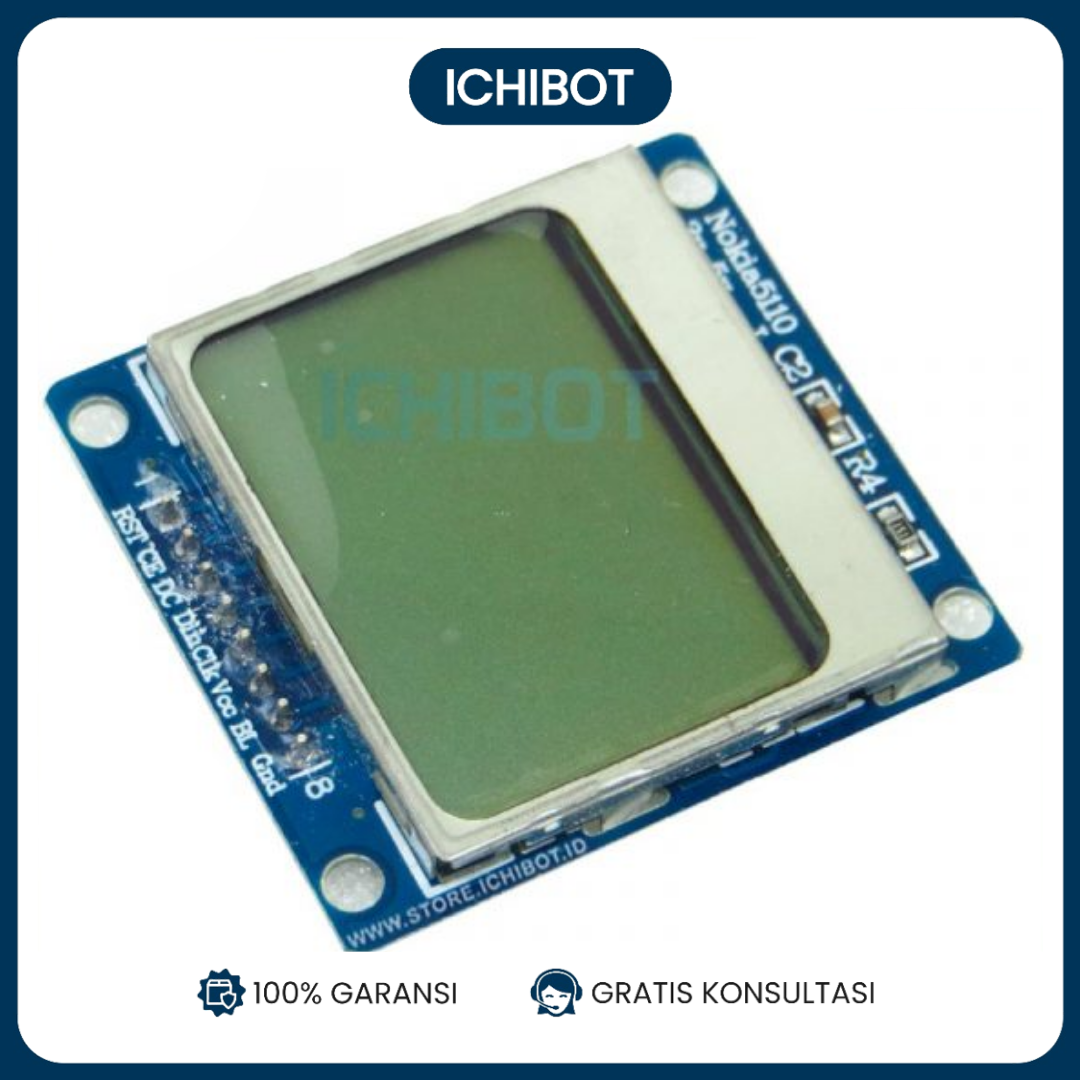

The Nokia5110 LCD is a second-hand disassembled screen for Nokia mobile phones. The LCDs sold on this site are all selected and of very good quality. The bottom plate is designed for this station, with positioning holes at four corners, and two rows of wiring ports are provided at the same time, arranged as follows:

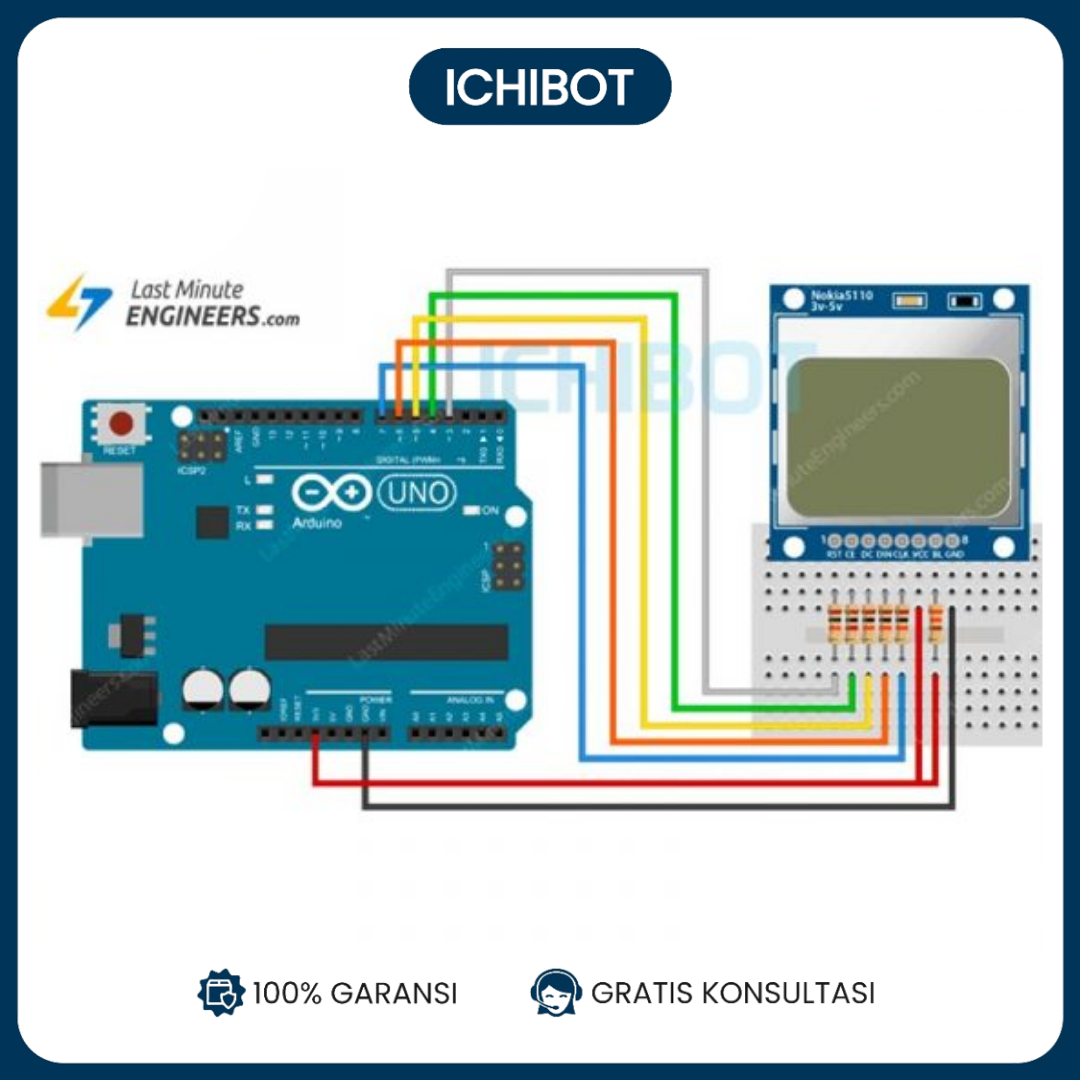

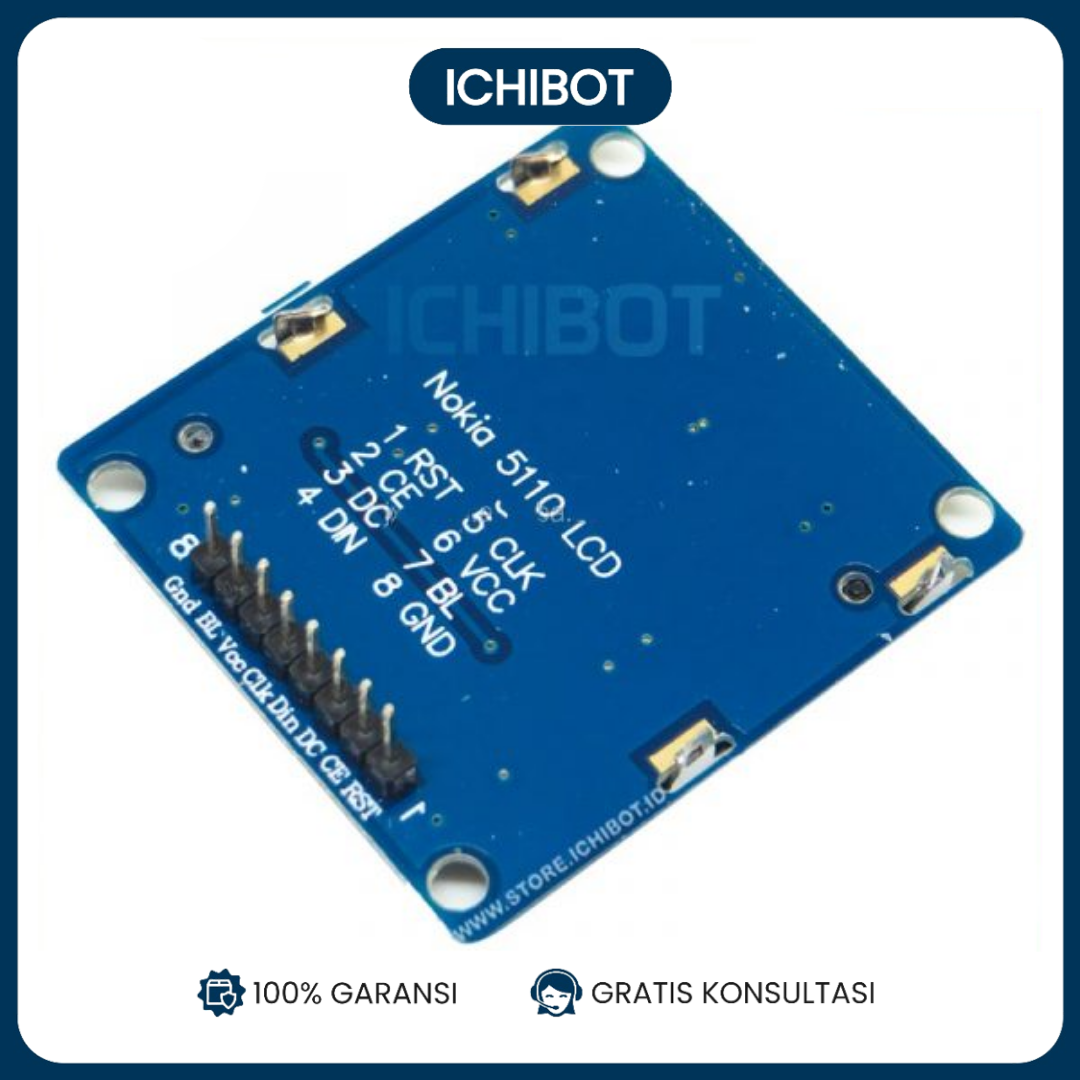

- RST-reset
- CE —— Chip Selection
- DC-data/command selection
- DIN —— serial data line
- CLK —— serial clock line
- VCC —— Power input (both 3.3v and 5v are available, verified by experiments, no problem)
- BL —— Backlight control terminal
- GND —— ground wire
The interface is a serial SPI interface, this site provides 51 single-chip microcomputer, Nios II soft core driver routines!
