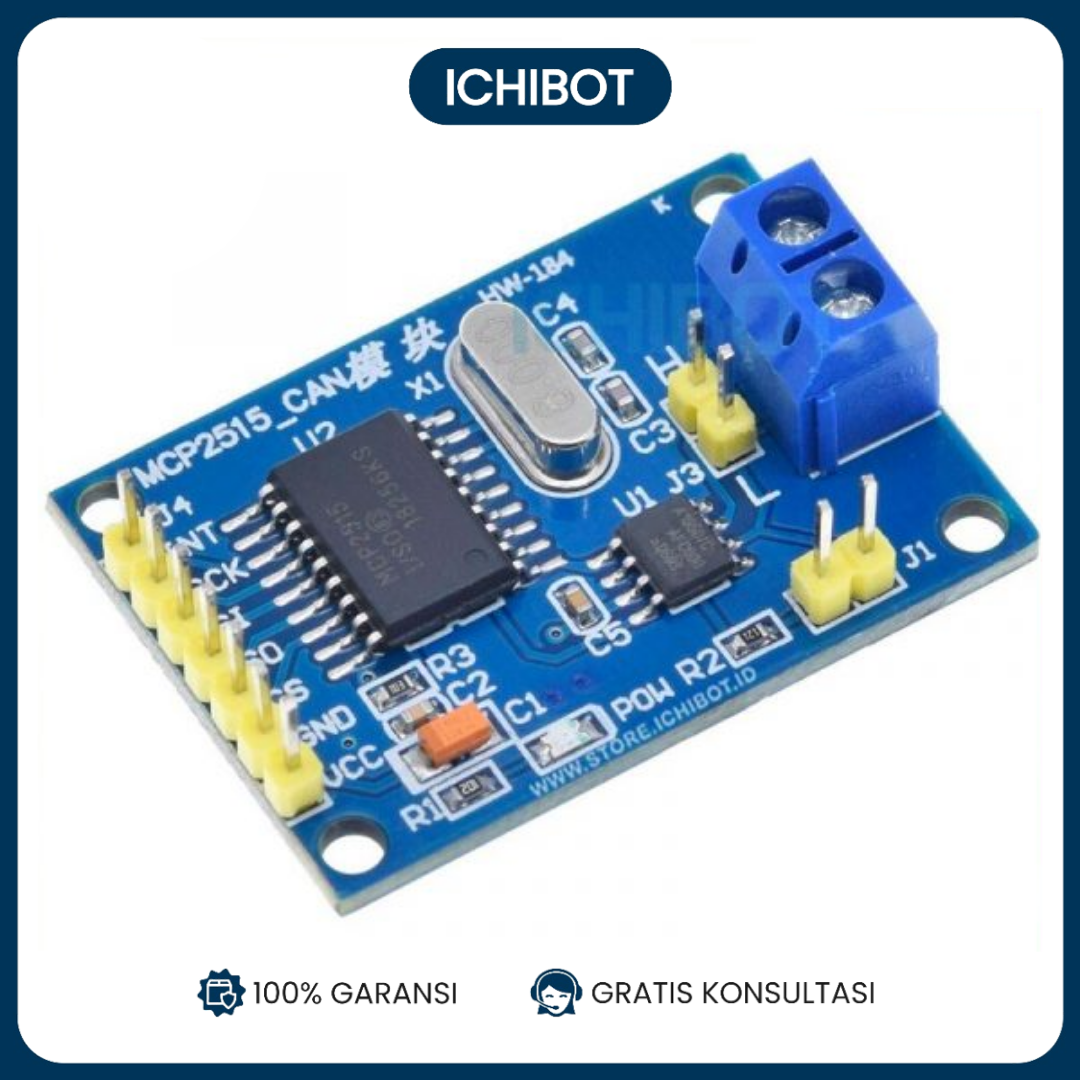

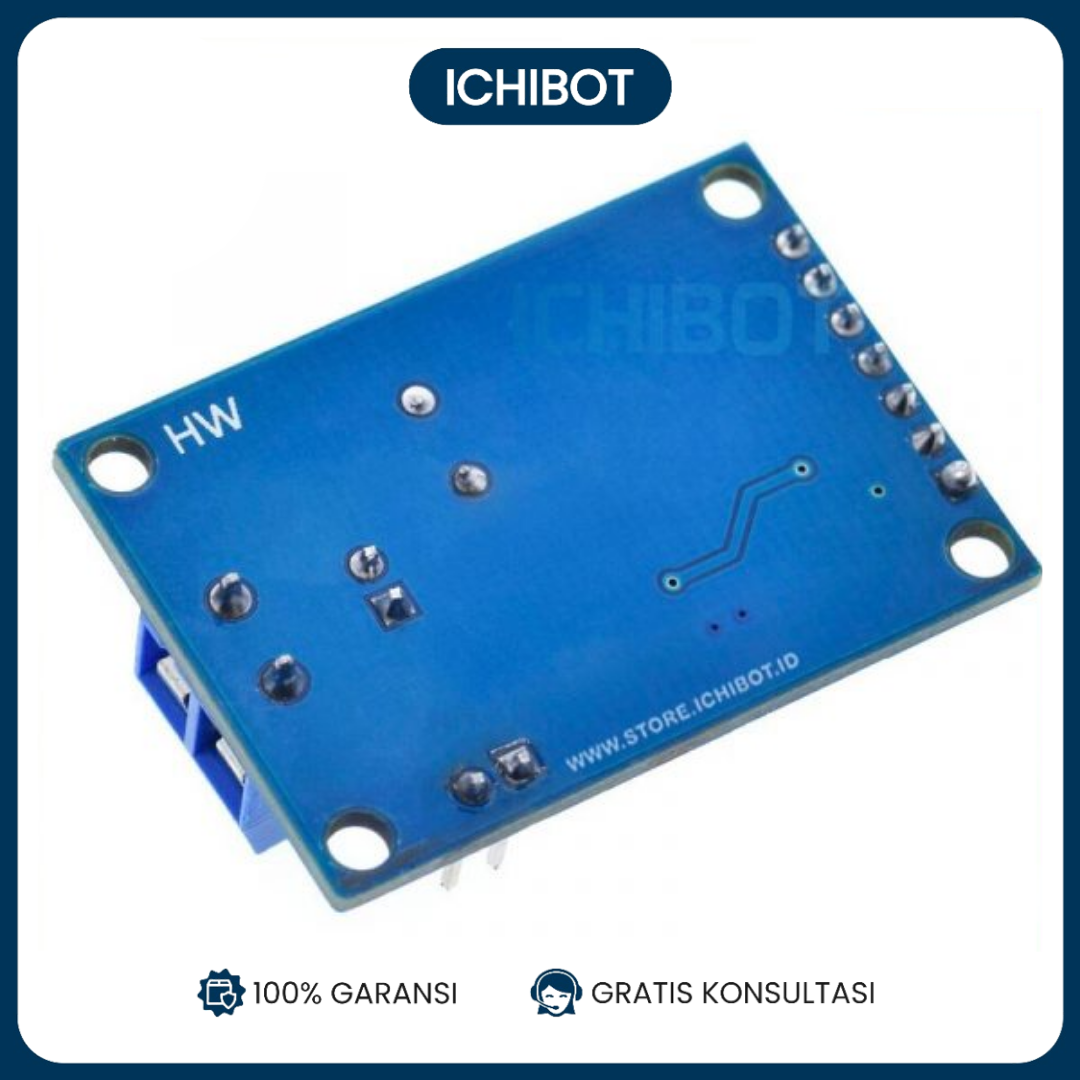

MCP2515 CAN Bus Modul TJA1050 Receiver SPI Protocol

Quick Overview

1. Support CAN V2.0B technical standard, communication rate 1Mb / S.
2. Module 5V DC power supply, SPI interface protocol control
3. 0 to 8 bytes long data field.
4. 8MHZ crystal oscillator
5. 120Ω terminal resistance
6. Use High-speed CAN transceiver TJA1050
7. Impedance matching, guaranteed drive capability, long-distance data transmission, prevent signal radiation
8. The working current: typical 5mA, standby current 1 microamp. Except for the power indicator.

This is MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino with this module, you will find easy to control any CAN Bus device by SPI interface with your MCU, such as Arduino UNO and Compatible with Arduino based micro-controller projects.

Specifications

Input Supply voltage (V)  :-   5
Working current (mA)      :-   5
Communication Rate (Mbps) :- 1
Data bits  :-    8
Crystal oscillator (MHz)  :-  8
Terminal Resistance (Ω) :- 120
Supports  :-  CAN V2.0B

Pin Definitions
VCC 5V power input pin
GND power ground pin
CS SPI SLAVE select pin (Active Pin)
SO SPI master output slave input pin
SCLK SPI clock pin
INT MCP2515 interrupt pin

Interface
J1 120R resistor terminal selection
J2 CANH, CANL KF301-2P block output
J3 CANH, CANL pin output

FEATURES :

1. Support CAN V2.0B technical standard, communication rate 1Mb / S.
2. 0 to 8 bytes long data field.
3. Use High-speed CAN transceiver TJA1050
4. SPI control for expanding Multi CAN bus interface
5. Use serial port could view the communication data
6. With the independent key, LED indicator, Power indicator
7. With power pin
8. Standard frames, extended frames, and remote frames.
9. Impedance matching, guaranteed drive capability, long-distance data transmission, prevent signal radiation

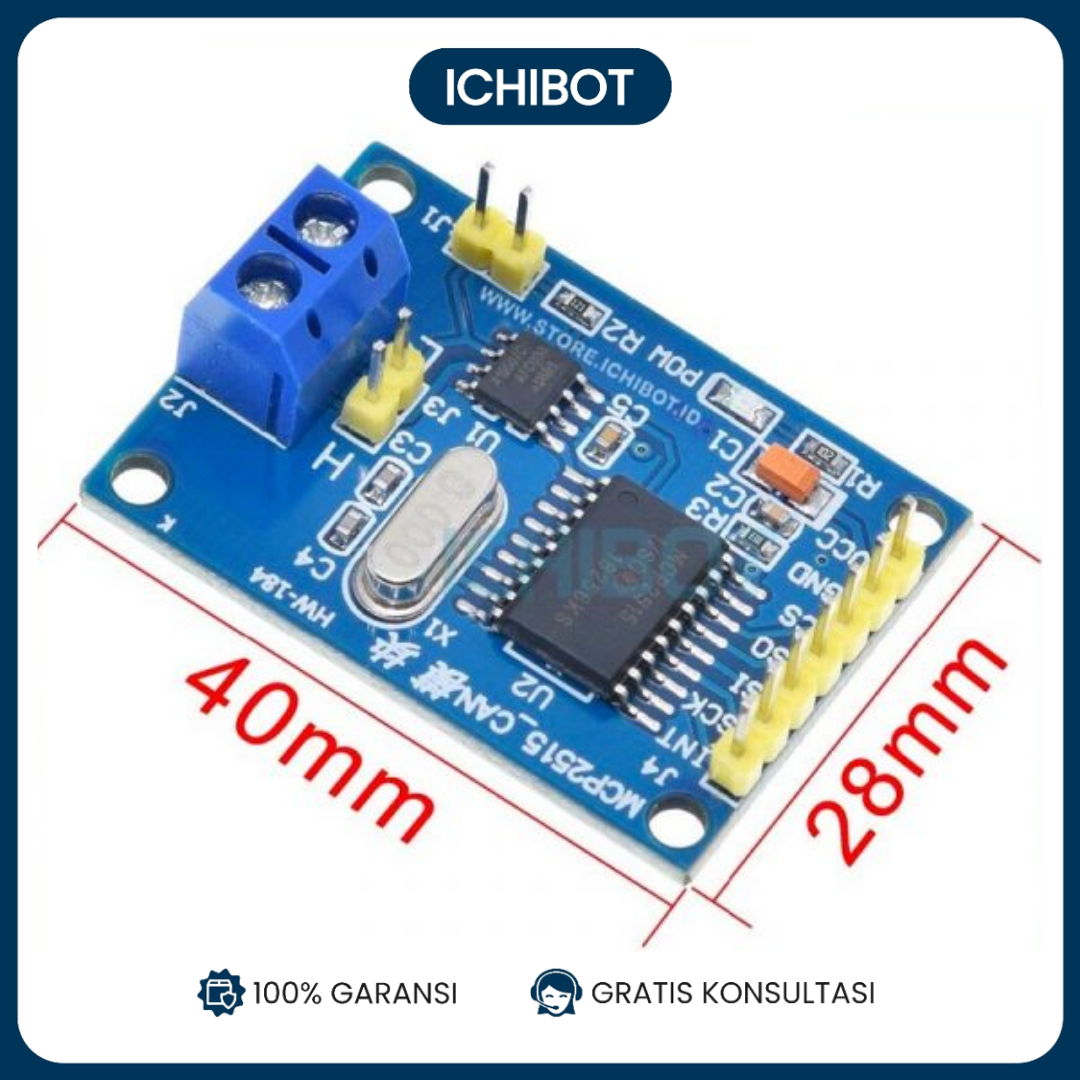

10. Positioning screw hole center spacing 23 mm x 38 mm
11. The working current: typical 5mA, standby current 1 microamp. Except for the power indicator.

Input Supply voltage (V)  :-   5
