Product parameters

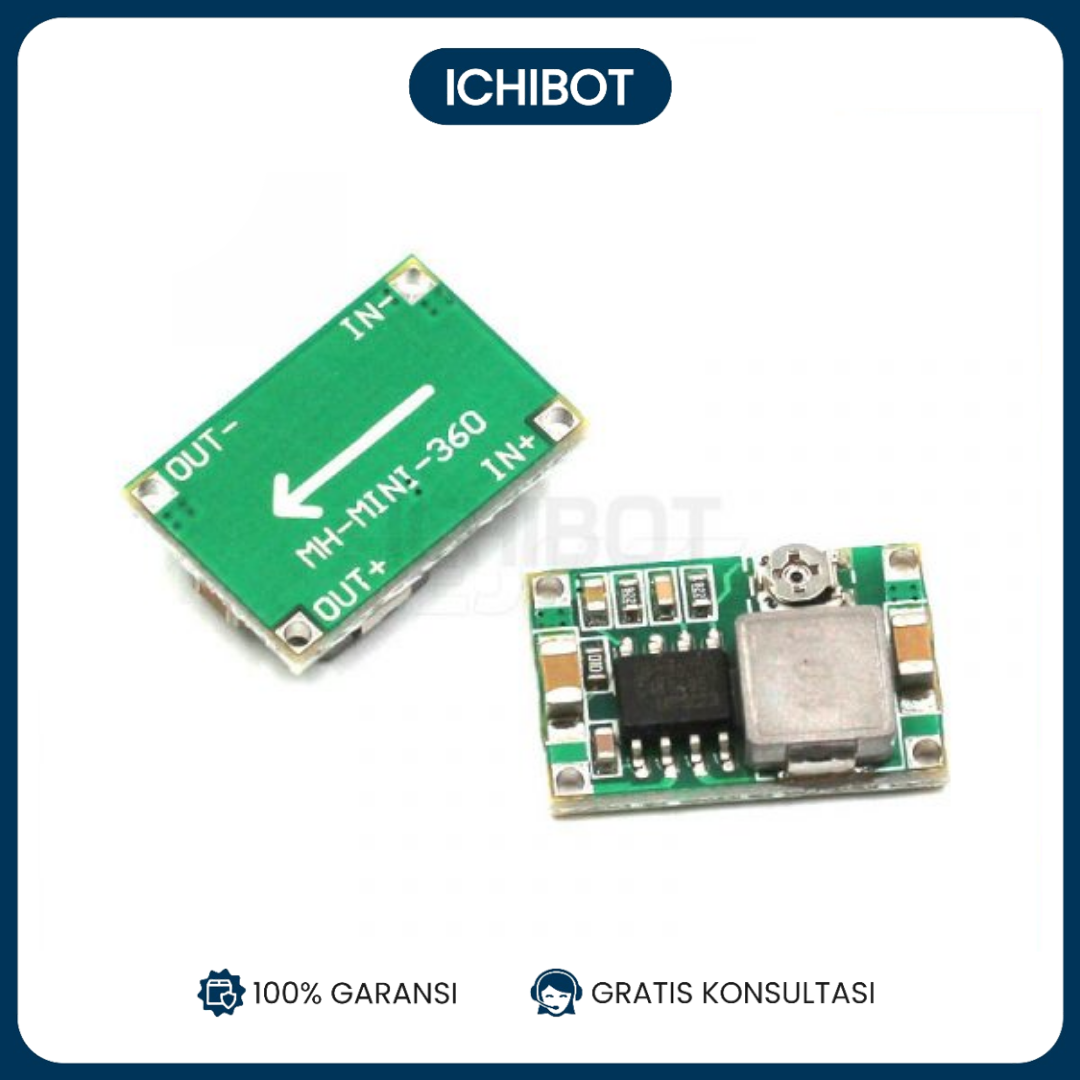

Model name: MINI-360 (small volume DC-DC synchronous rectification jade reduction module)
Module nature: non isolated step-down
Rectification mode: synchronous rectification
Input voltage: 4.75v-23v
Output voltage: 1.0v-17v
Output current: peak 3a, long time 1.8A
Conversion efficiency: 96% (maximum)
Switching frequency: 340khz
Output ripple: 30mV (no load)
Load adjustment rate: ± 0.5%
Voltage regulation rate: ± 2.5%
Operating temperature: – 40 ℃ to + 85 ℃
Peripheral dimension: 17 * 11 * 3.8 (L * w * h) (mm)
