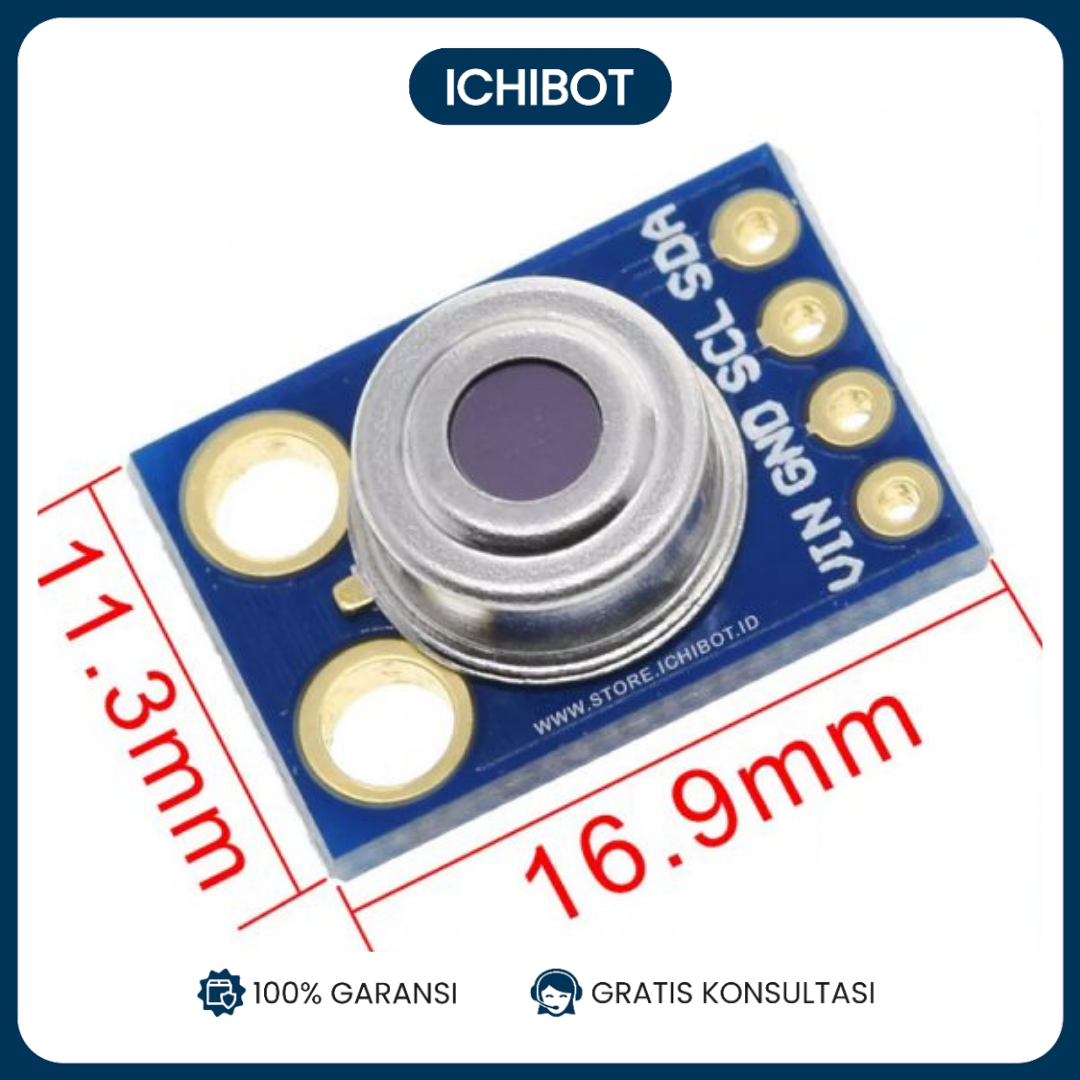

Sensor suhu non-contactless yang cocok digunakan untuk membuat sebuah project selama pandemi covid-19. Jarak aman pembacaan sensor ini 1 hingga 5 cm Power supply: 3-5v (internal low dropout voltage regulator) Communication method: standard IIC communication protocol Provide 51 single chip, arduino single chip program. SPESIFIKASI
- Small size, low cost

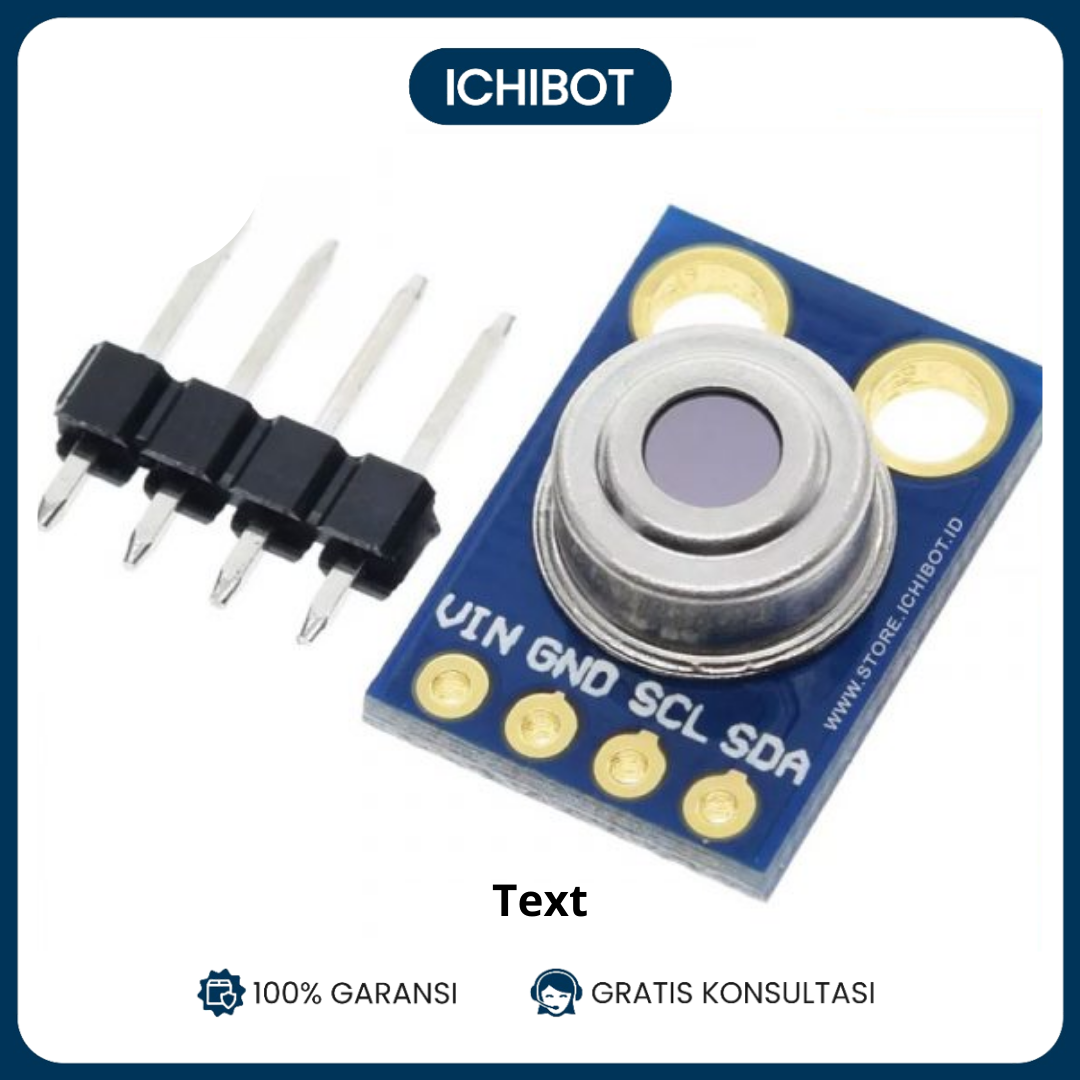

- Mounted on a breakout board with two types of pins

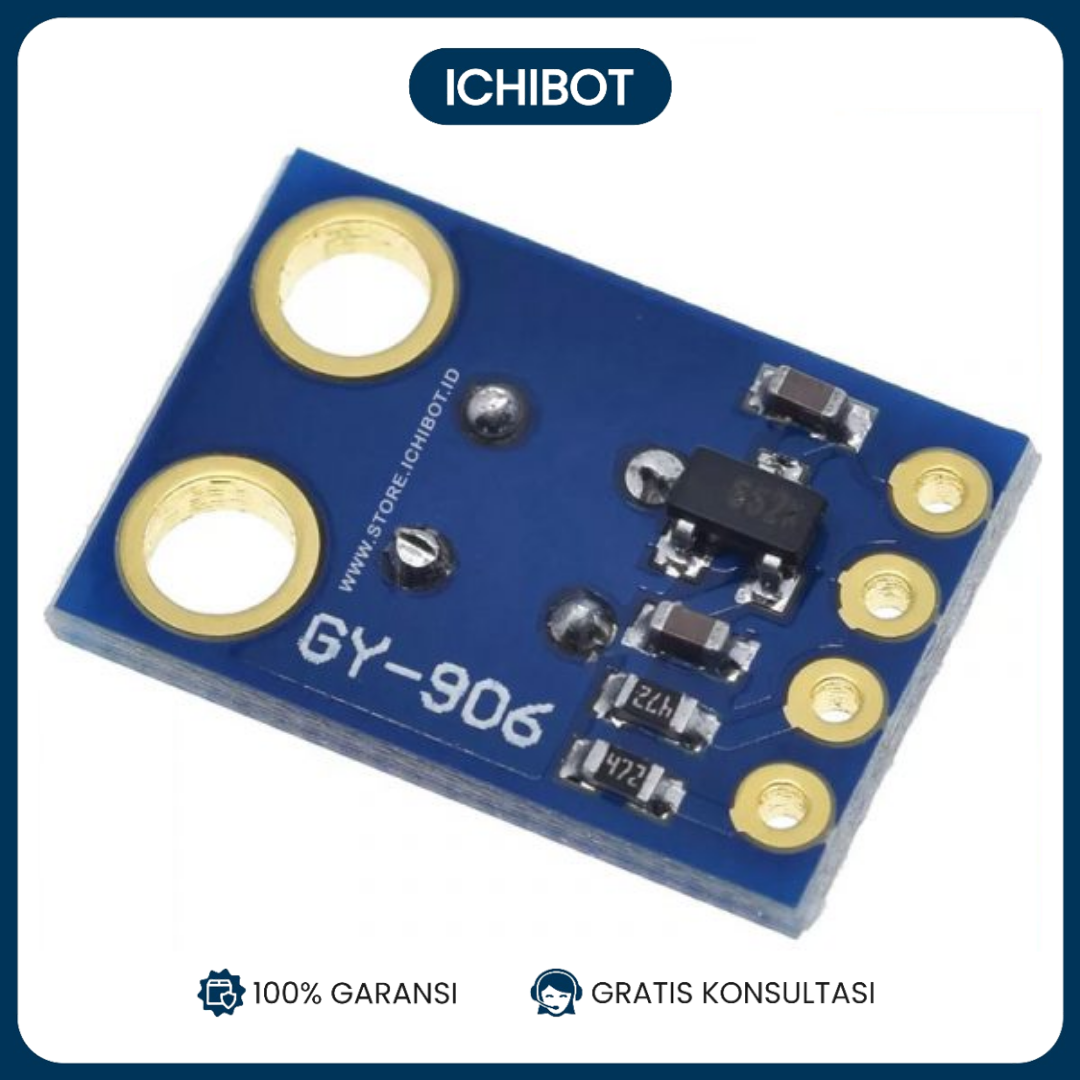

- 10k Pull up resistors for the I2C interface with optional solder jumpers
- Easy to integrate
- Factory calibrated in wide temperature range:
- -40…+125°C for sensor temperature and
- -70…+380°C for object temperature.
- High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration
- Measurement resolution of 0.02°C
- Single and dual zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuousreading
- Simple adaptation for 8…16V applications
- Sleep mode for reduced power consumption
- Different package options for applications andmeasurements versatility
- Automotive grade
