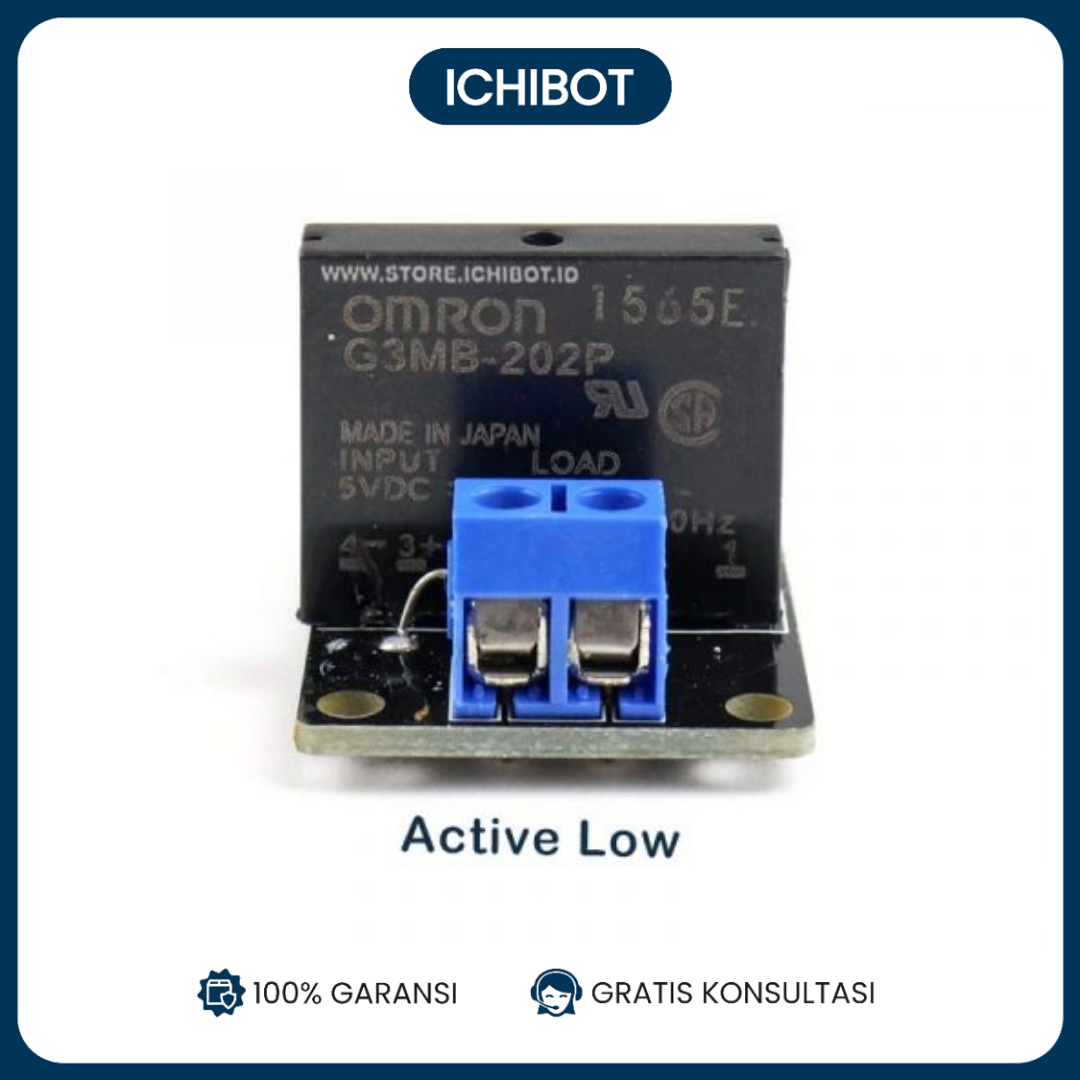

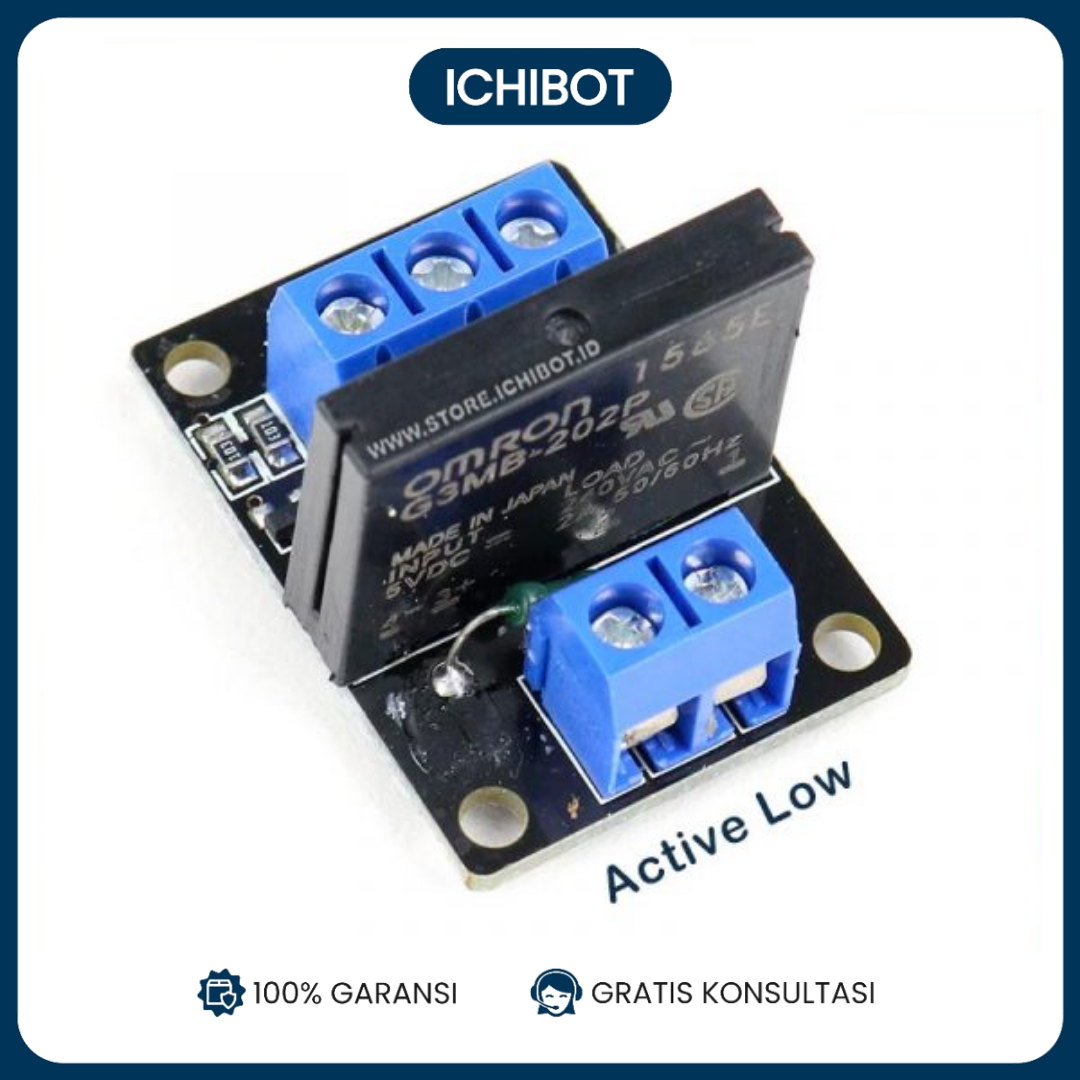

Modul Solid State Relay SSR 1Ch 1 Channel – Aktif Low

Product Features : 1,5V solid state relays 240V 2A, the output band. 2A fuse resistance 240V. 2, Size: 25 .2 mm * 34 is .4mm * 2 4.0mm (length * width * height) 3. Weight : 10.4 g (net weight) 4. Packaging: single module electrostatic bag packaging 5. Input power: 5V DC ( <= 160MA) 6. Trigger signal voltage: Low level: 0-1.5V state low level Relay ON high level: 2.5-5V state high level relay OF F 7. It is more convenient to connect the blue KF301 terminal to the control line. Work area: Input power: 5V DC ( <= 160MA) Trigger signal: ( 0-1.5V state low level relay ON) (2.5-5V state high level relay OFF)
