Product parameter :
1. Working voltage : DC4.5V-35V
2. Output current: 0-5A
3. Output power : 90W ( maximum)
4. Quiescent current : 7u A (standby state)
5. PWM duty cycle: 1%-100%

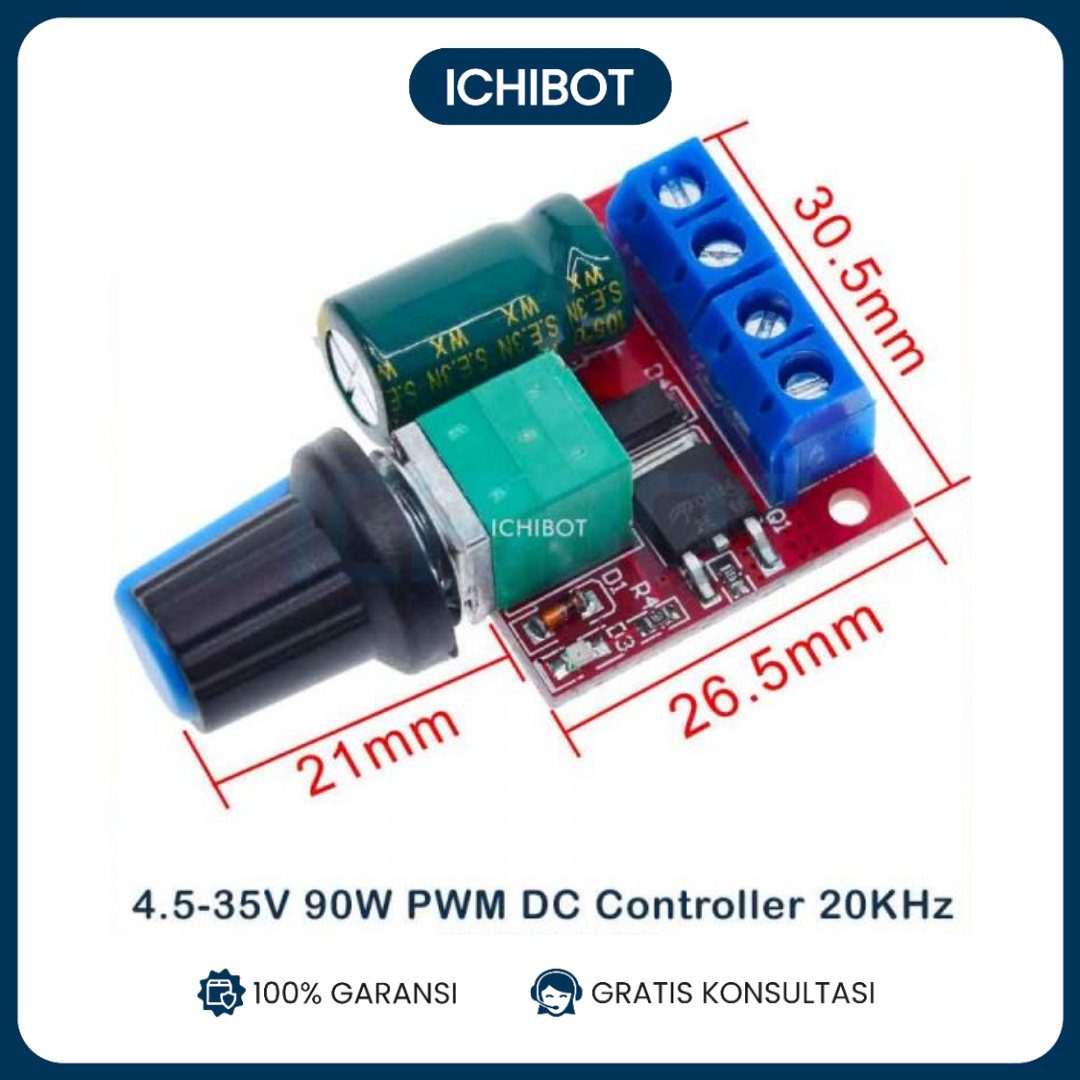

6. PWM frequency : 20khz
7. Dimensions: length 30MMx width 26MM (without handle) x height 14MM 8. Weight: 0.013KG
