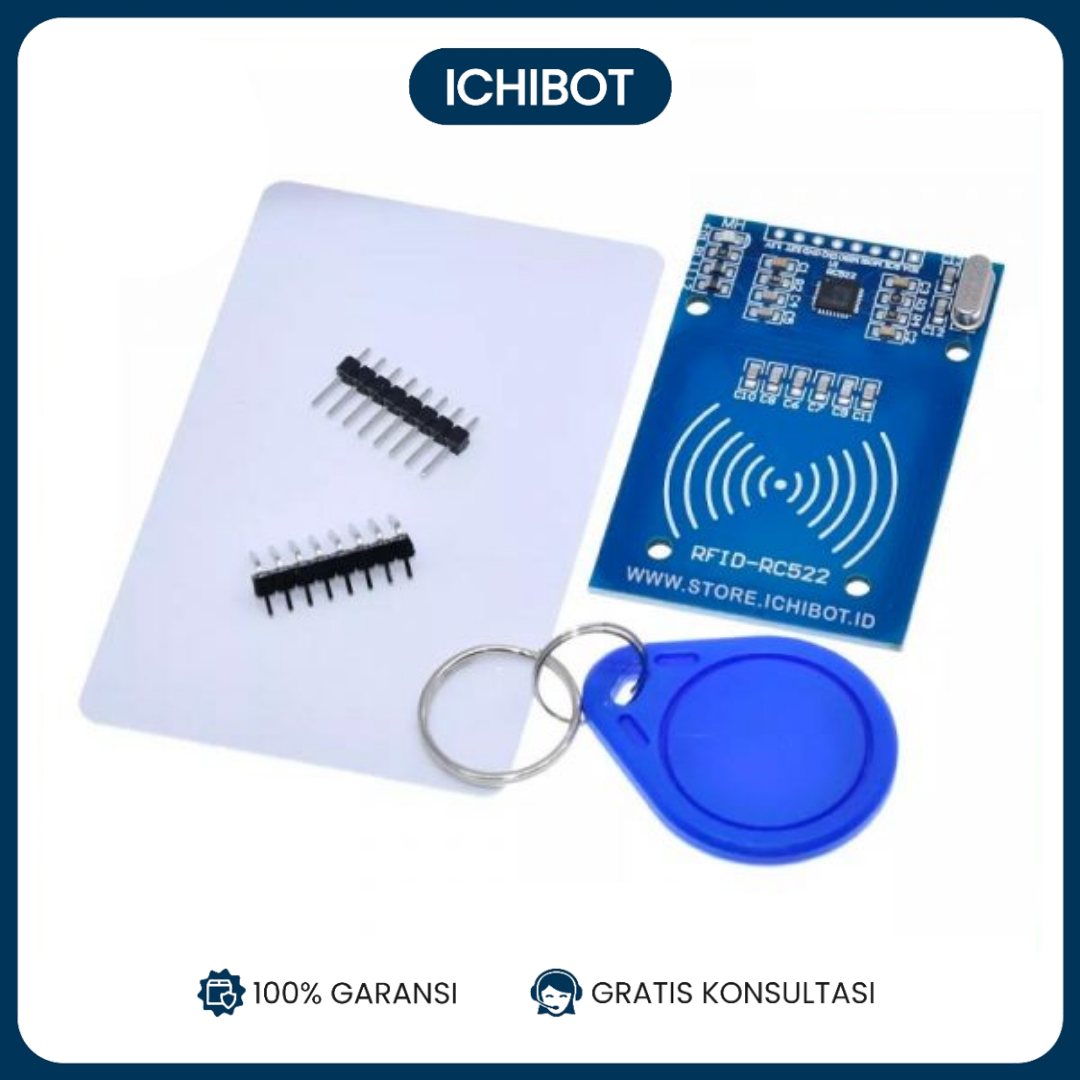

RFID Reader Writer module RC522 Arduino Compatible

RC522 – RFID Reader / Writer 13.56MHz with Cards Kit includes a 13.56MHz RF reader cum writer module that uses an RC522 IC and two S50 RFID cards. The MF RC522 is a highly integrated transmission module for contact-less communication at 13.56 MHz. RC522 supports ISO 14443A/MIFARE mode. RC522 – RFID Reader features an outstanding modulation and demodulation algorithm to serve effortless RF communication at 13.56 MHz. The S50 RFID Cards will ease up the process helping you to learn and add the 13.56 MHz RF transition to your project. The module uses SPI to communicate with microcontrollers. The open-hardware community already has a lot of projects exploiting the RC522 RFID Communication, using Arduino. Specifications: Operating Current :13-26mA / DC 3.3V Idle Current :10-13mA / DC 3.3V Sleep Current: < 80uA Peak Current: < 30mA Operating Frequency: 13.56MHz Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire Environmental Operating Temperature: -20 – 80 degrees Celsius Environmental Storage Temperature: -40 – 85 degrees Celsius Relative humidity: relative humidity 5% – 95% Reader Distance: 50mm / 1.95″ (mifare 1) Module Size: 40mm 60mm Module interface: SPI Data transfer rate: Maximum 10Mbit/s
