Description:
Introduction to XBEE:

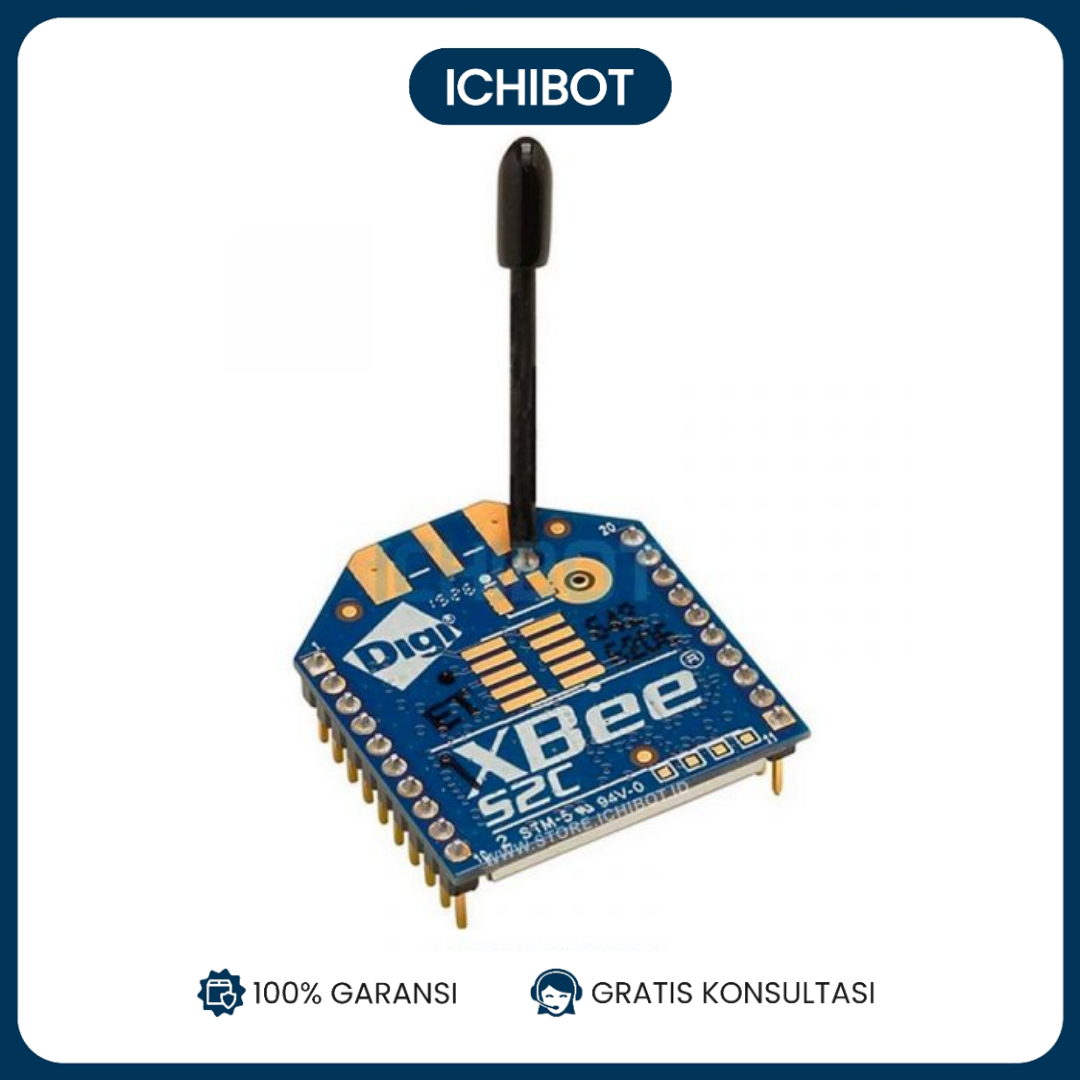

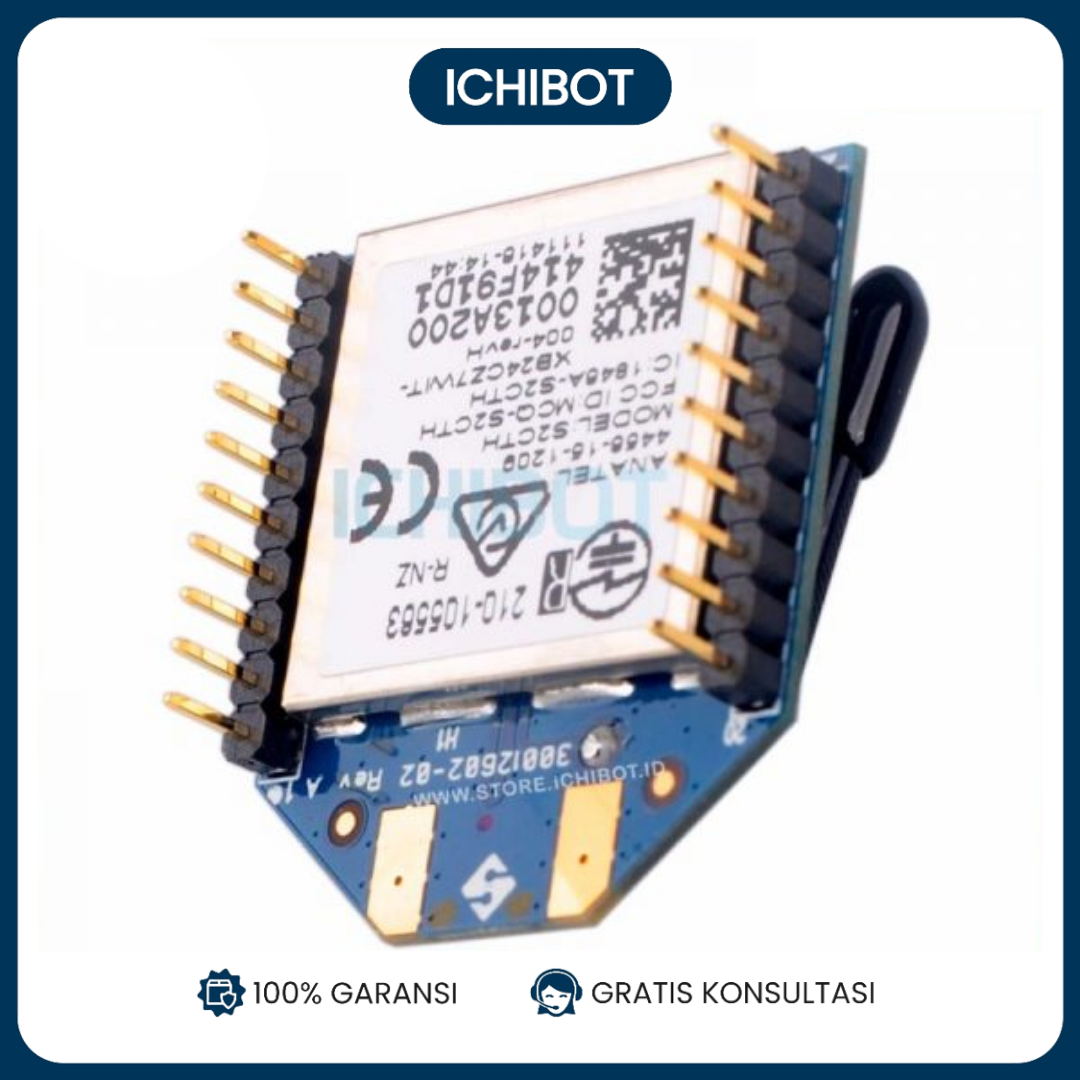

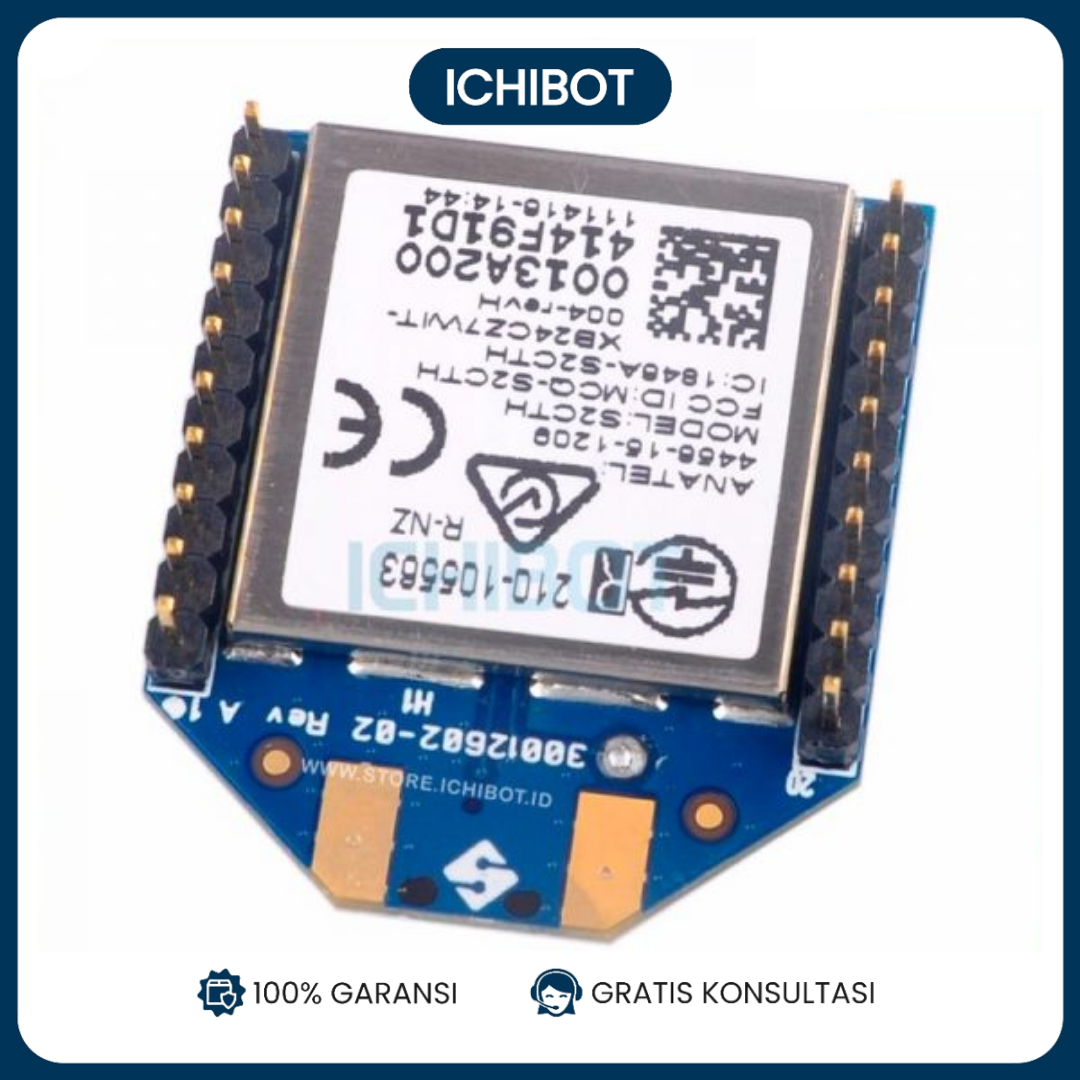

– The Xbee module is a wireless module adopts ZigBee technology, through the serial port to communicate with MCU and other equipment, and can fast achieve the device access to the ZigBee network.
– This is a 2.4G. XBee wireless module,This module uses the 802.15.4 protocol stack, through the serial port to communicate with MCU and other equipment, support communication of point to point and point to multipoint network. The antenna in this module is wire antennas, simple, convenient.
Parameters:
– 3.3V @ 50mA
– The maximum rate of communication 250kbps
– The output of 1mW (+0dBm)
– 400 feet (120 meters) communication distance
– Wire antenna
– Fully FCC certified
– 6 10-bit ADC input pins
– 8 digital IO pins
– 128-bit encryption
Package Included:
– 1 * Data Transmission Module
Additional Parameter:
- 3.3V @ 50mA
- Maximum communication rate 250kbps
- 1mW output (+0dBm)
- 400 feet (120 meters) communication distance
- Wire antenna
- Fully FCC certified
- 6 10-bit ADC input pins
- 8 digital IO pins
- 128-bit encryption
- Local or over-air configuration
- AT or API command set
