Specifications:
1.Input voltage range:4~38VDC(Note:input voltage not exceeding 38V)
2.Output voltage range:1.25-36VDC adjustable
3.Output current: 0-5A
4.Output power: 75W
5.voltmeter range: 4 to 40V, error ±0.1V
6.Operating frequency: 180KHz
7.High efficiency up to 96%
8.Built in thermal shutdown function
9.Built in current limit function
10.Built in output short protection function
11.Input reverse polarity protection: None (if required, high current diode in series with the input).

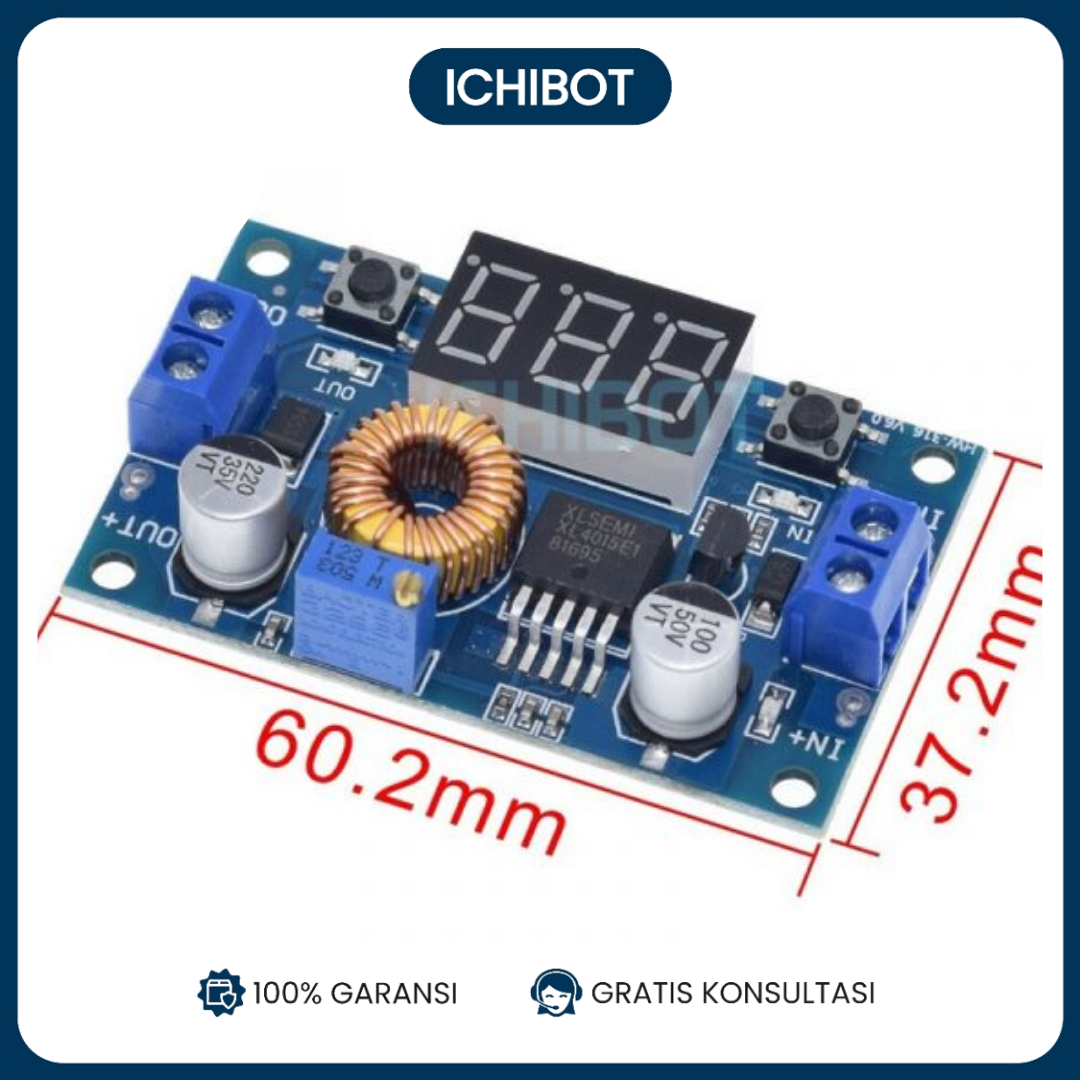

12.L x W x H =6.6*3.9*1.8CM
