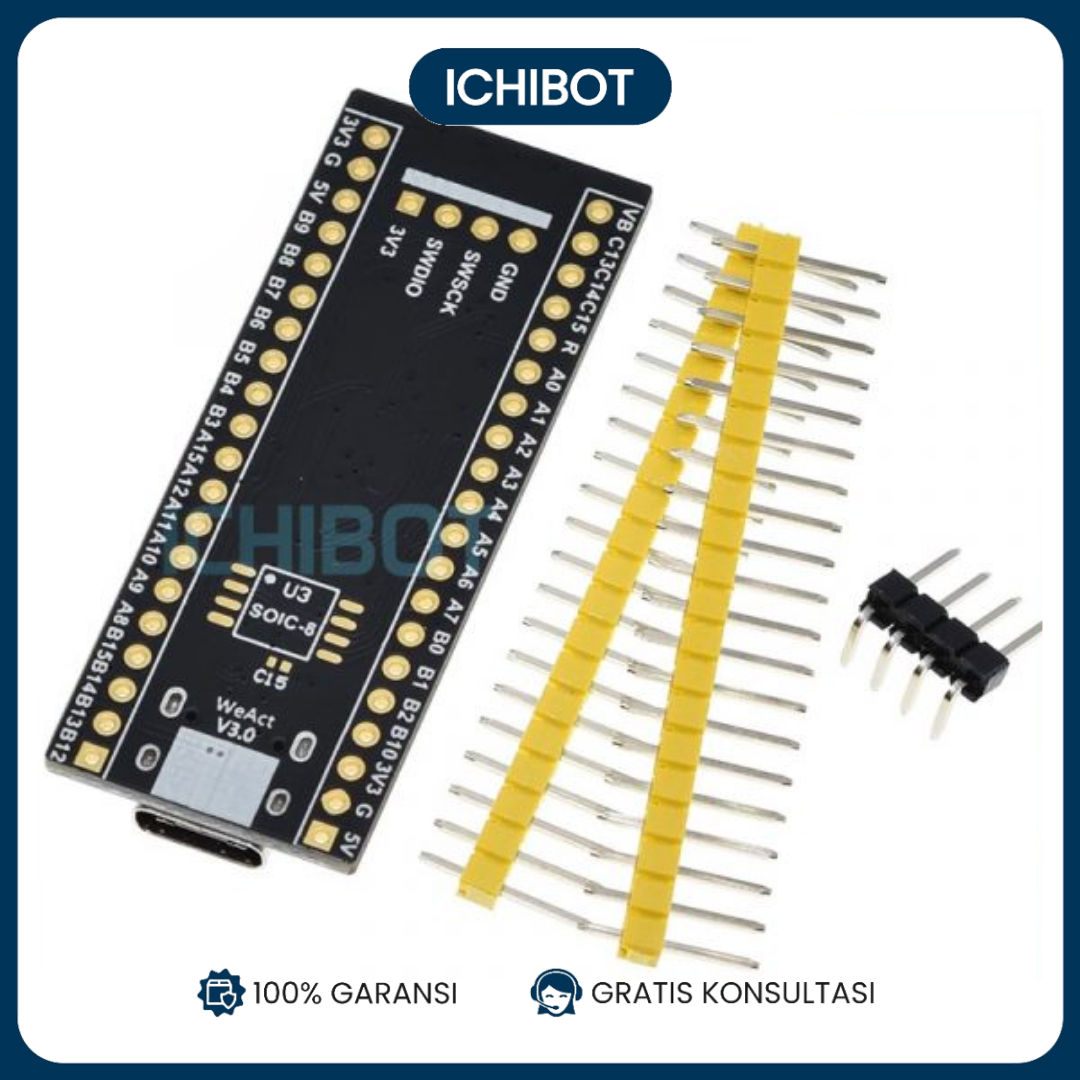

Board STM32 STM32F4 STM32F411CEU6 + 4MB Flash memory
STM32F4 Ini adalah adalah Generasi ARM-Cortex M4 Murah bahkan dibandingkan dengan STM32F1 dan walapun kecil sudah terdapat Floating Point Unit single precision yang berguna untuk komputasi matematika seperti kontroller PID maupun fuzzy controller yang memiliki komputasi yang lumayan kompleks.
Board new version 2.0
Micropython Board STM32F411CEU6
MCU STM32F411CEU6 core board , 128KB RAM , 512KB ROM , 100 MHz .
3x USARTs running at up to 12.5 Mbit/s,
5x SPI (muxed with I2S) running at up to 50 Mbit/s,
3x I²C up to 1Mbps
1x SDIO running at up to 48MHz and available on all packages,
1x USB 2.0 OTG full speed,
2x full duplex I²S up to 32-bit/192KHz,
3x simplex I²S up to 32-bit/192KHz,
12-bit ADC reaching 2.4 MSPS,
11 timers, 16- and 32-bit, running at up to 100 MHz.
Micropython platform has already installed on board, ready to use, robust for industrial applications.
Additional 4 Mega Byte Flash memory installed, ready to use, W25Q32 chip.

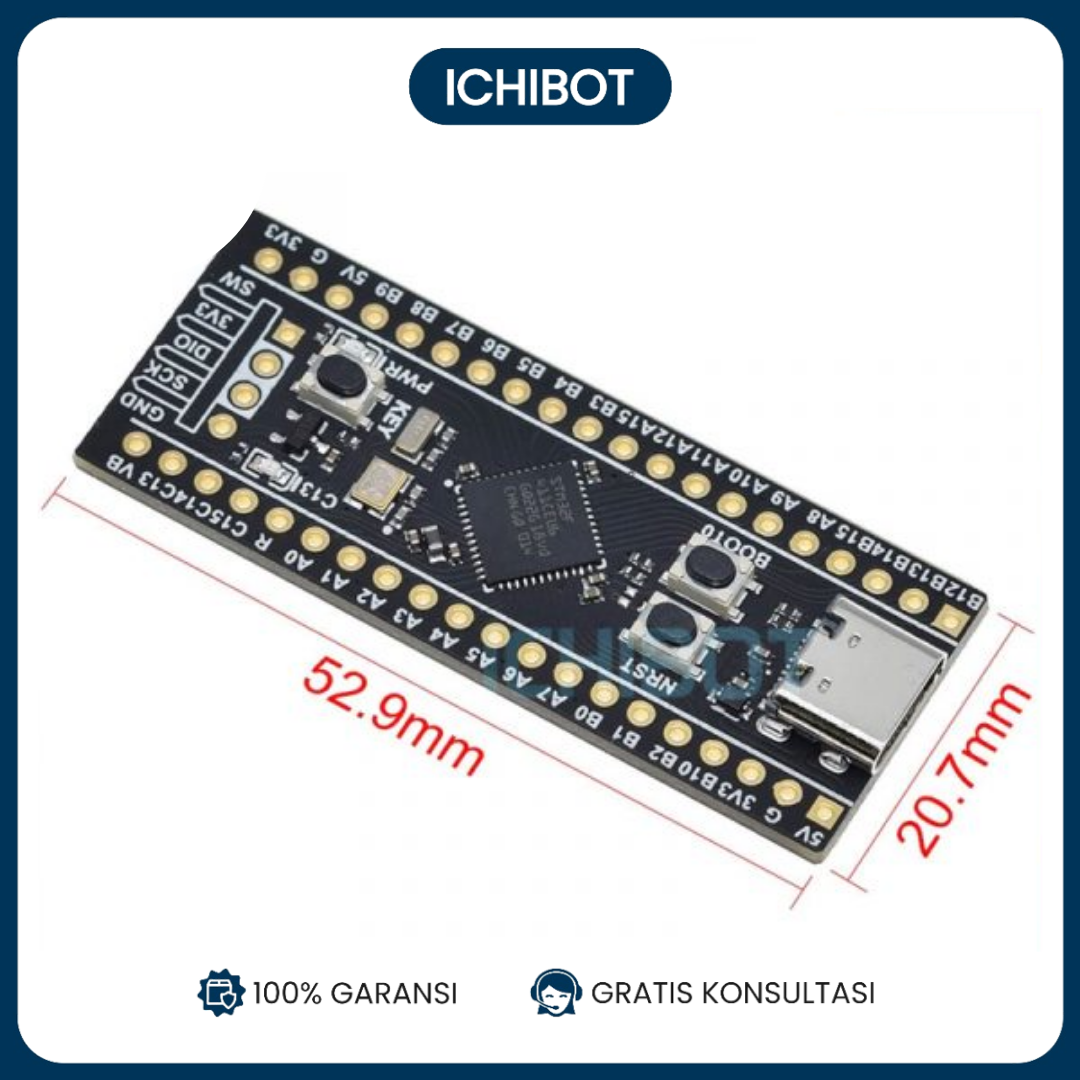

Board size: 53mm x 20mm.
