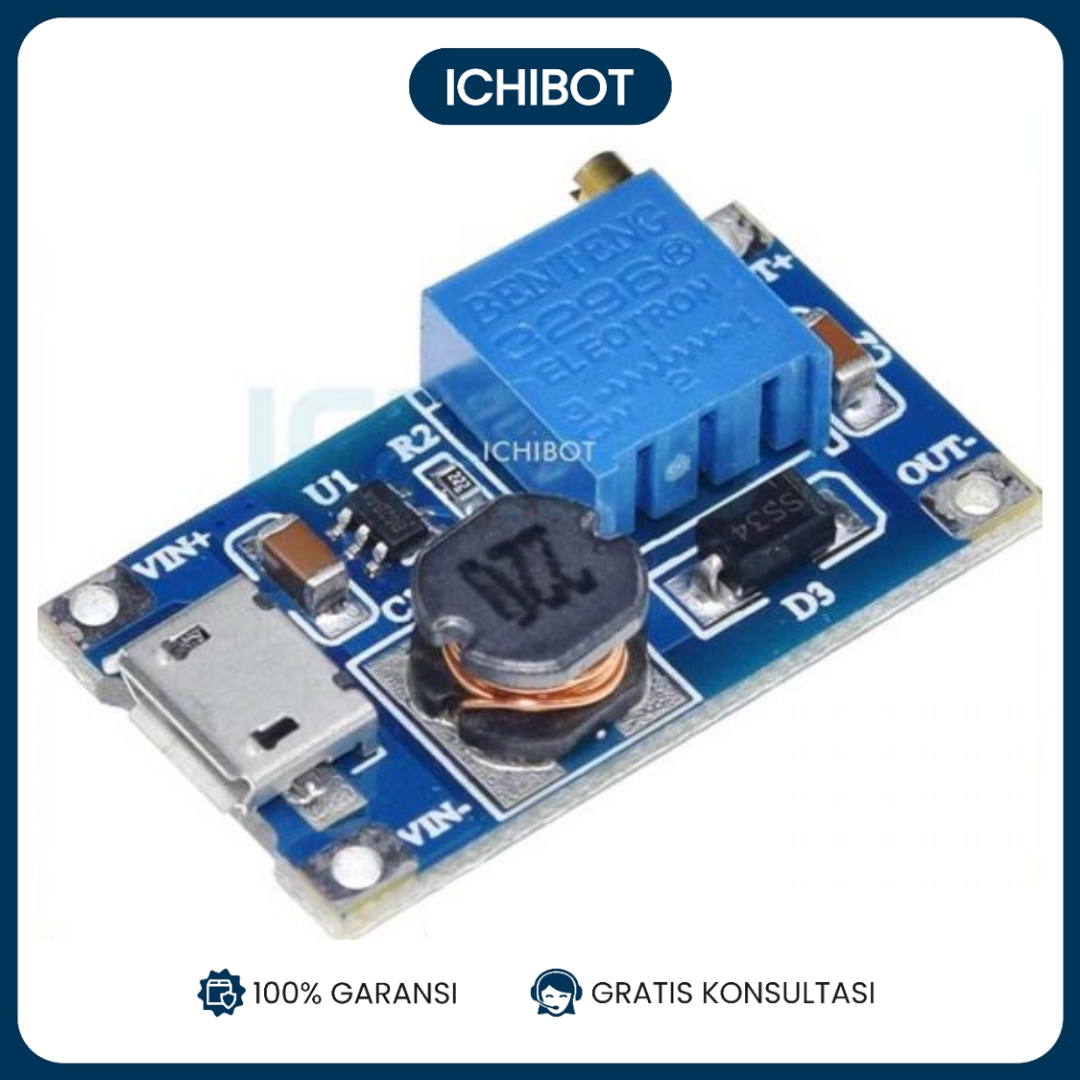

MT3608 with usb:
2a boost board boost module DC-DC wide voltage input 2 / 24V liter 5/9/12 / 28V adjustable 2577
Module Highlights:
The whole network smallest adjustable boost module can be easily installed in a variety of small equipment inside.
MicroUSB input can be used with a USB charger or mobile power via phone line can easily get 9V, 12V, 15V, 18V, 24V voltage common, easy to use.
Wide input and output voltage, high conversion efficiency.
Module Features
1) The maximum output current: 2A (recommended to use in 1A)
2) Input voltage: 2 v – 24 v
3) Maximum output voltage:> 28 v (recommended for use within 26V)
4) Efficiency:> 93% (efficiency and differential input and output related)

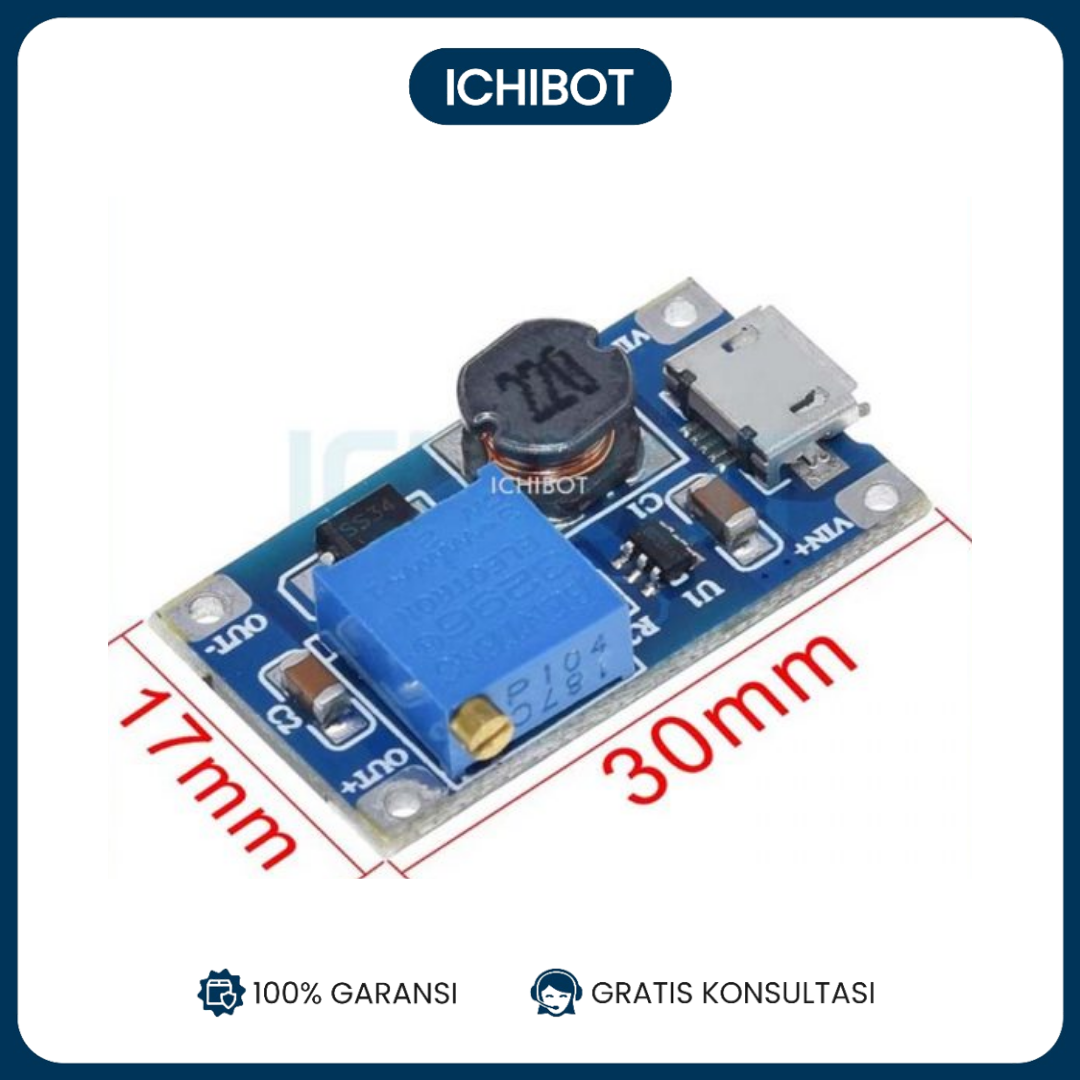

5) Size: 30mm * 17mm * 14mm (L * W * H)
Precautions
1) This module is a step-up module, the output voltage is greater than the input voltage
2) Peak current output current does not exceed 2A
