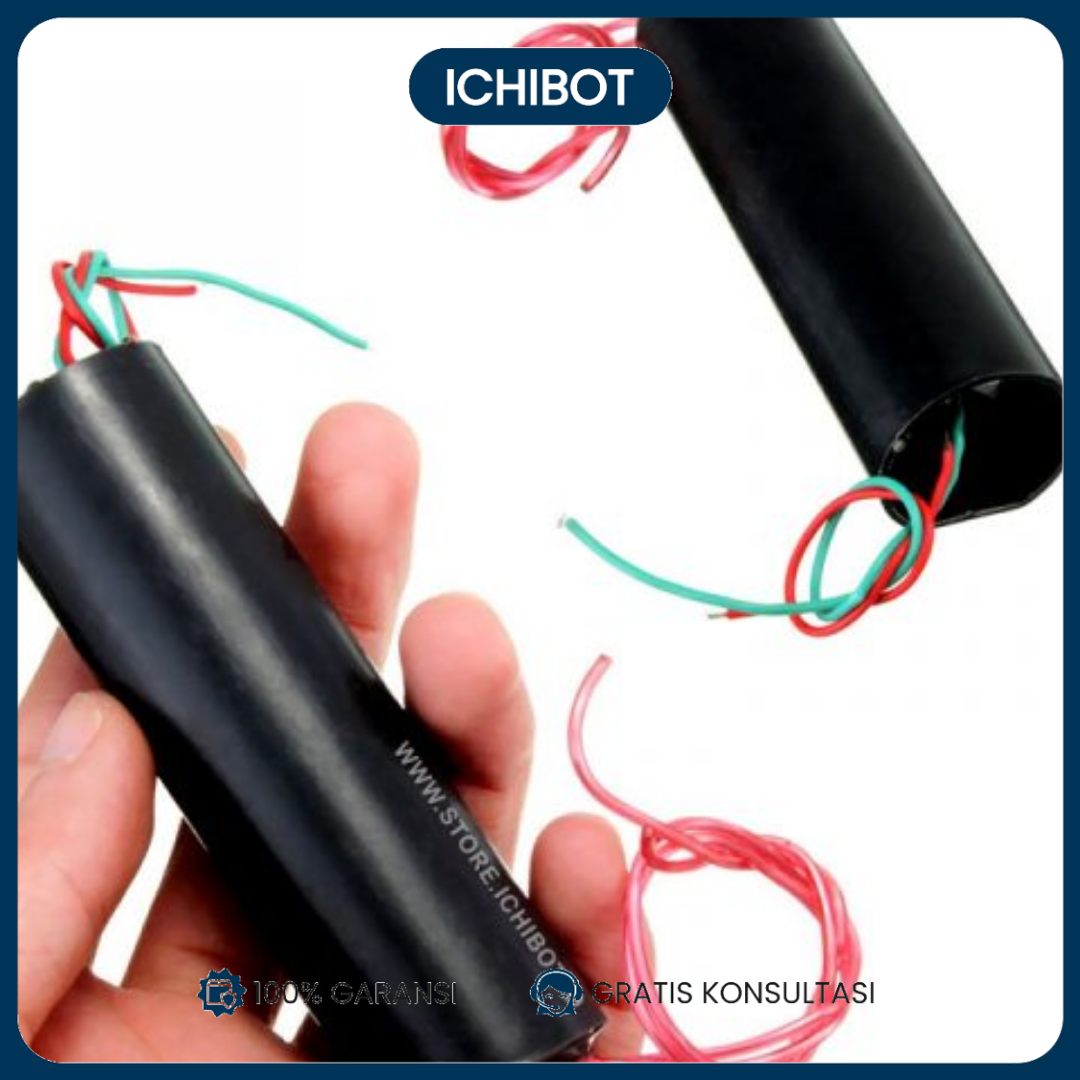

1000 KV Pulse Ignition Coil Inverter Arc GeneratorSpecifications:
Module type: MC-901
Input voltage: 3.7V-7.4V
Input current: 0.5A-1A
Input wire length: 9 cm
High voltage type: pulse DC type
Output voltage: 800KV-1000KV (please pay attention to safety when using)
Output current: 0.5A-1A
Output length: approximately 16 cm

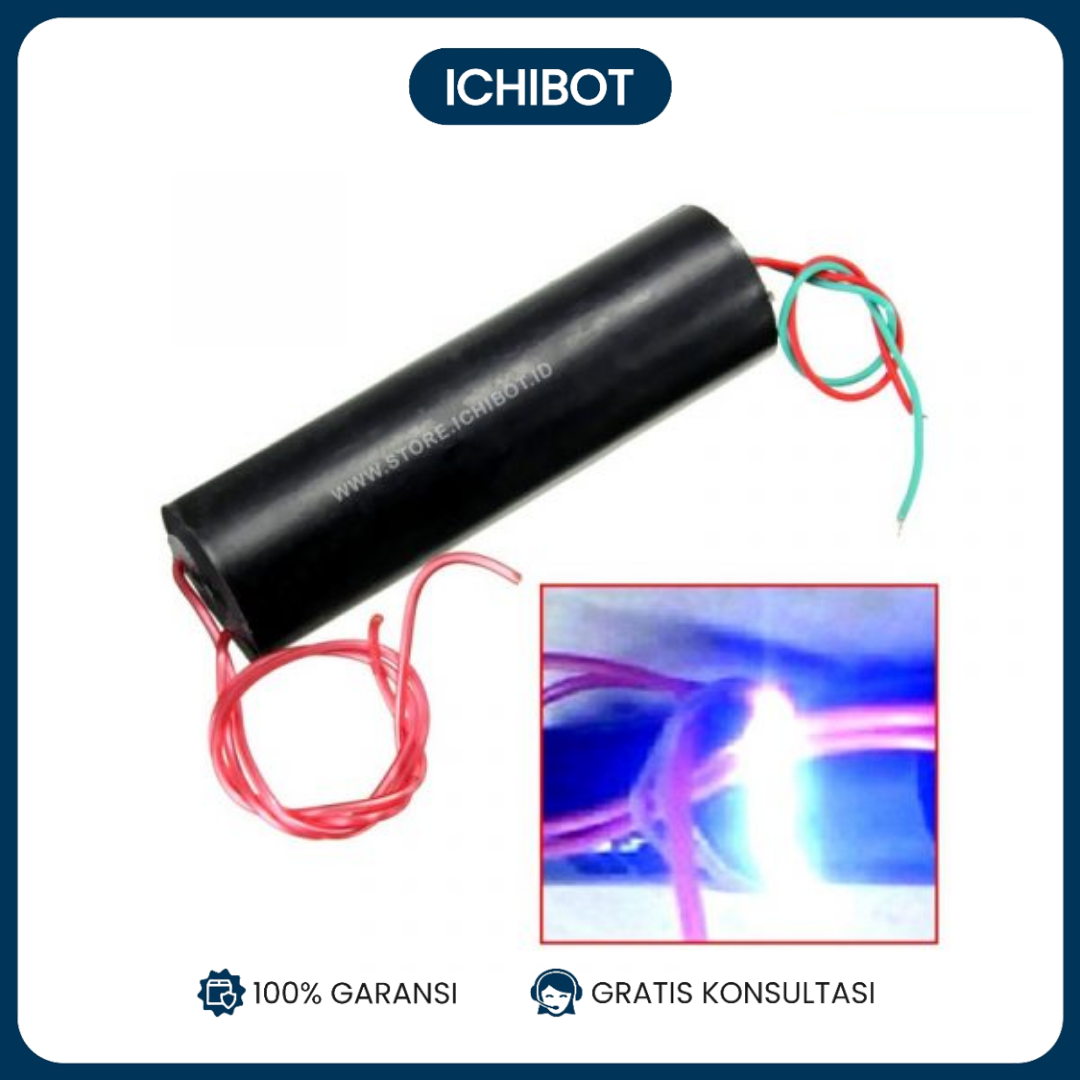

High voltage bipolar discharge distance: 1.5 cm -2 cm

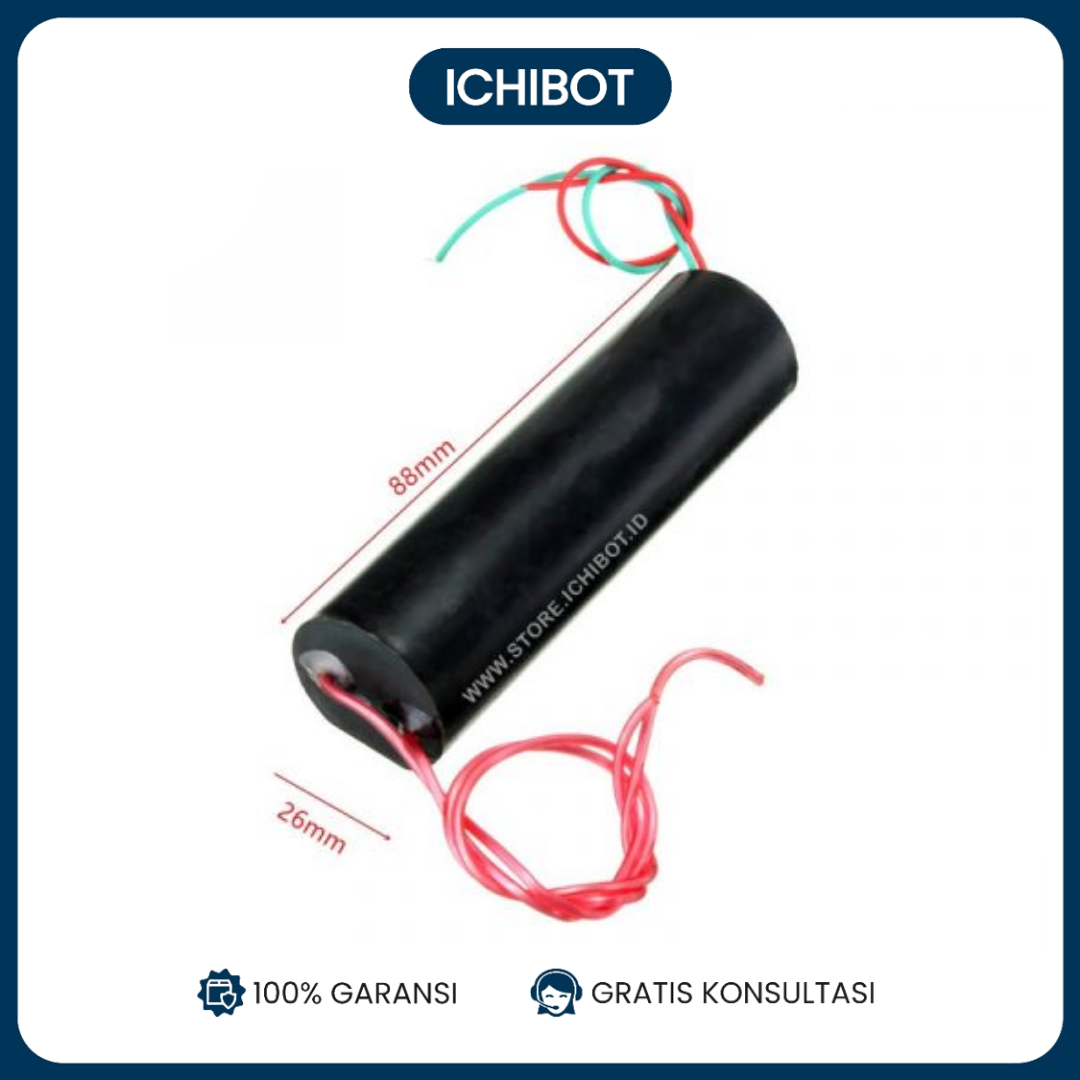

Size: 88 x 26mm(LxD)
Module use note:
1, high voltage module should avoid the use of high voltage no-load, power must be
adjusted before the high voltage line end of the right distance, high voltage wire drawing
distance and the use of battery voltage and capacity is proportional to.
2, the test arc distance from short to long experiment, when the power is prohibited
beyond the longest arc distance, due to the high pressure energy can not be released,
very easy to damage the module.
3, the power of the module, the internal heat is not heat, so not a long time to work.
Package include:
1 X High voltage inverter
