DESKRIPSI SINGKAT
Module ini menghasilkan logika digital sehingga sangat mudah untuk dipasangkan dengan mikrokontroler.
SPESIFIKASI

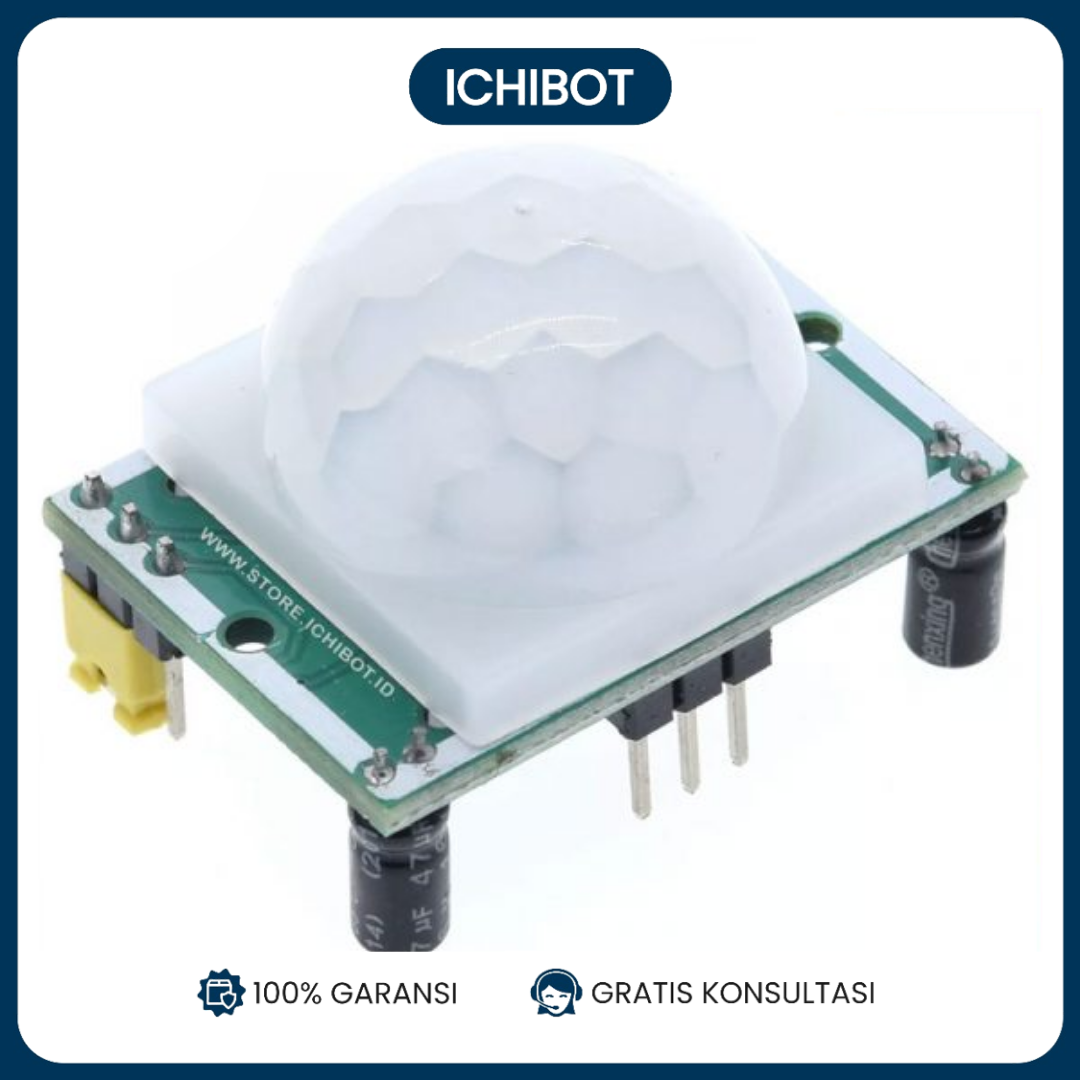

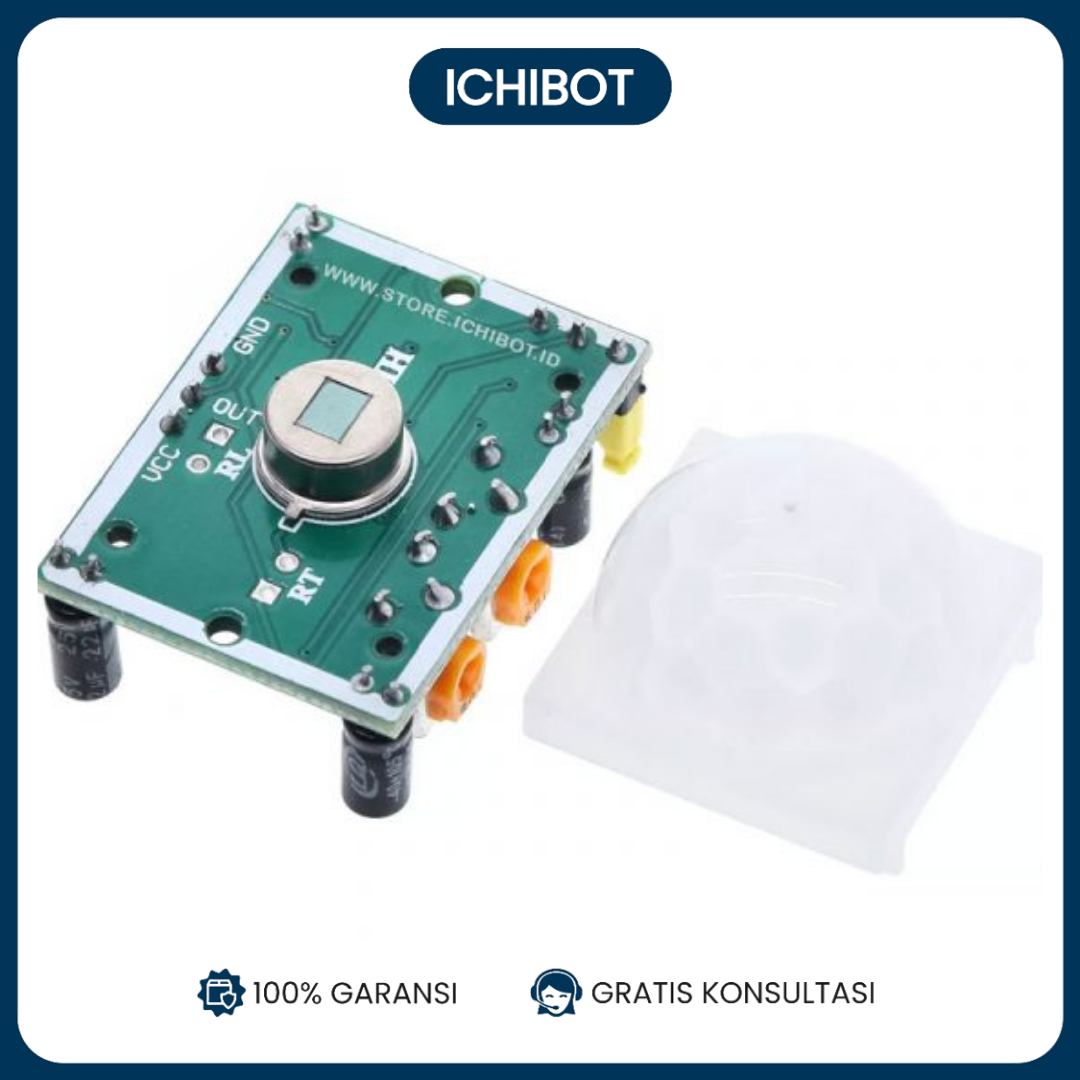

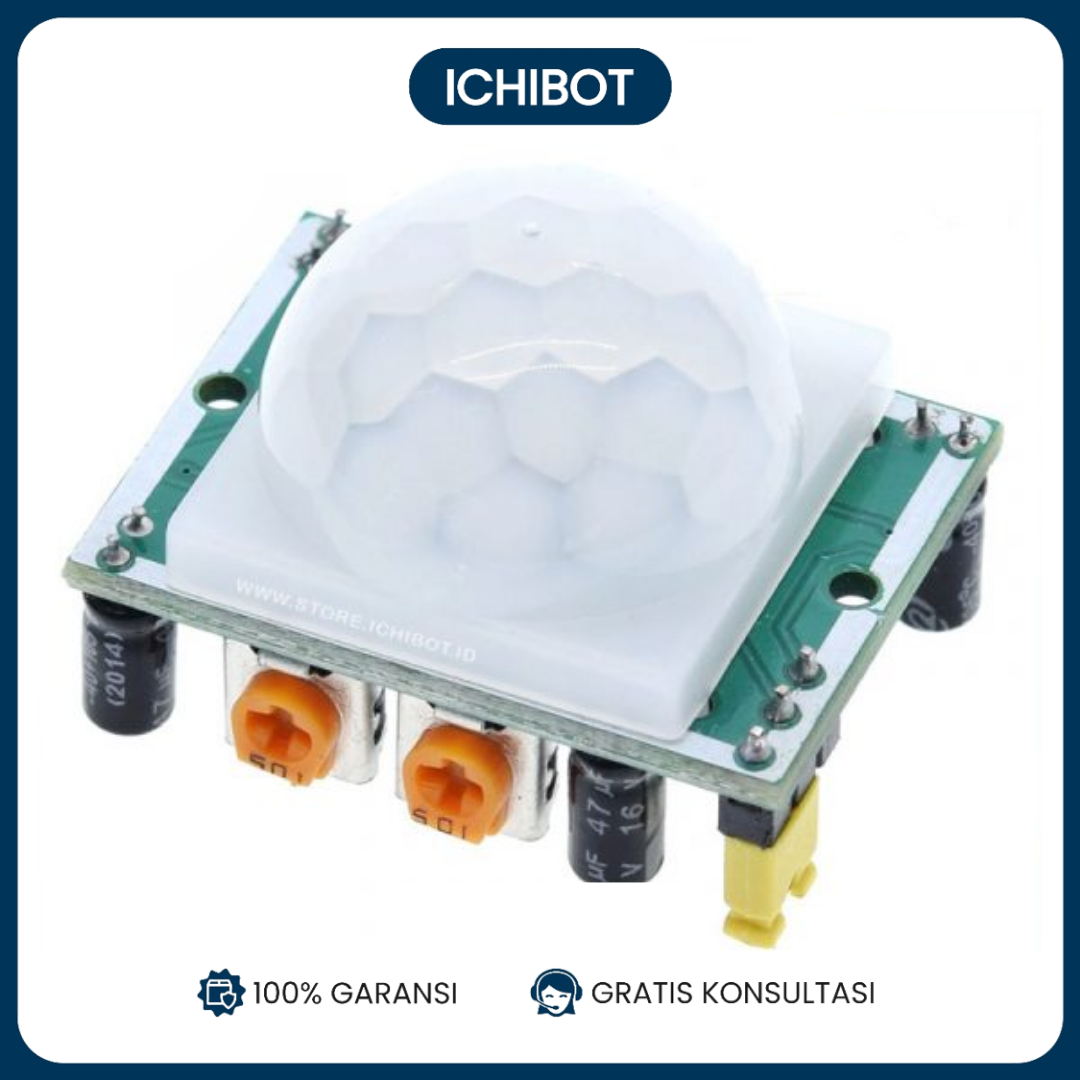

– Product Type: HC–SR501 Body Sensor Module
– Operating voltage range: DC 4.5-20V – Quiescent Current: Level output: High 3.3 V /Low 0V
– Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
– Delay time: 5-200S(adjustable) the range is (second to tens of second)
– Block time: 2.5S(default)Can be made a range(to tens of seconds

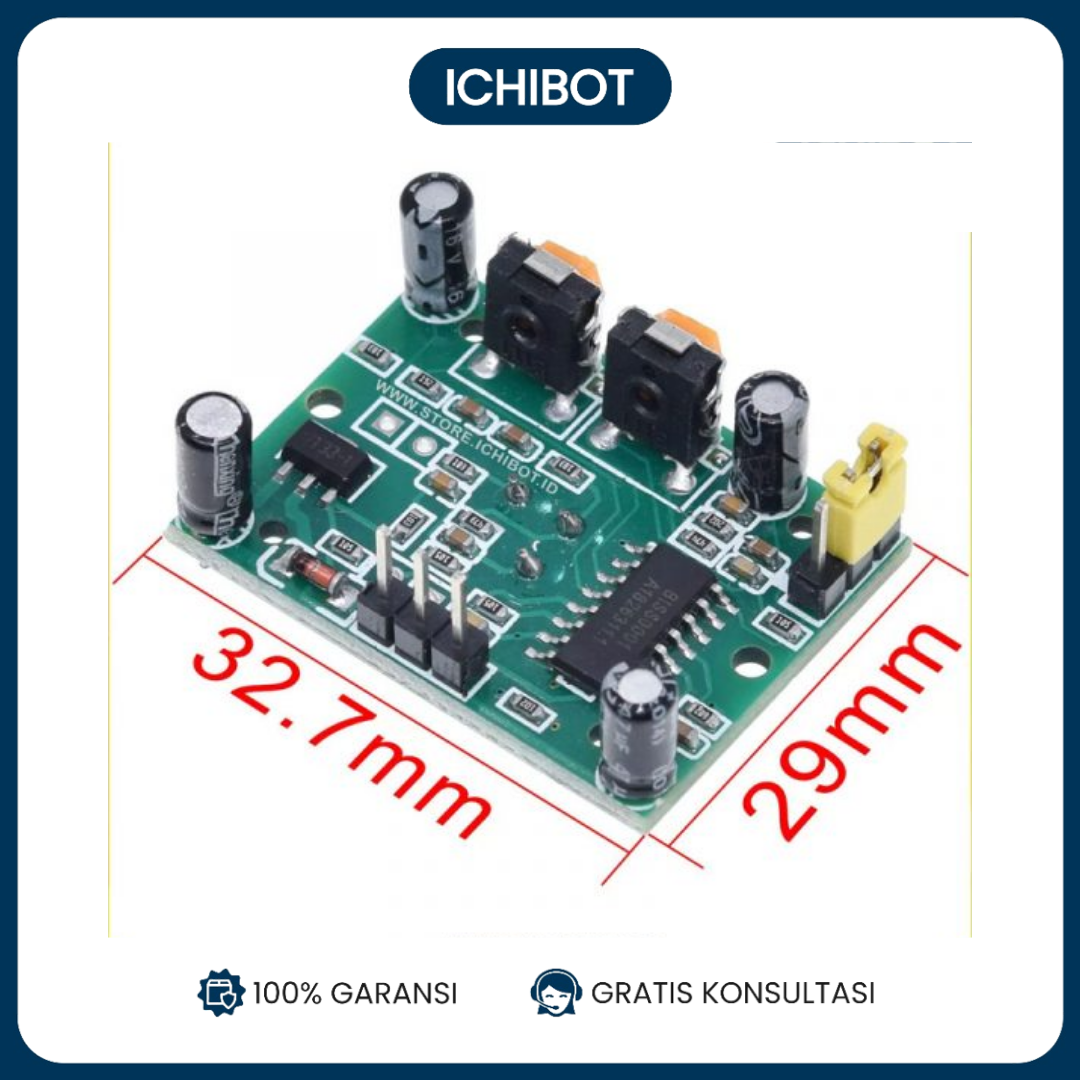

– Board Dimensions: 32mm*24mm
– Angle Sensor: Operation Temp: -15-+70 degrees
– Lens size sensor: Diameter:23mm(Default)
