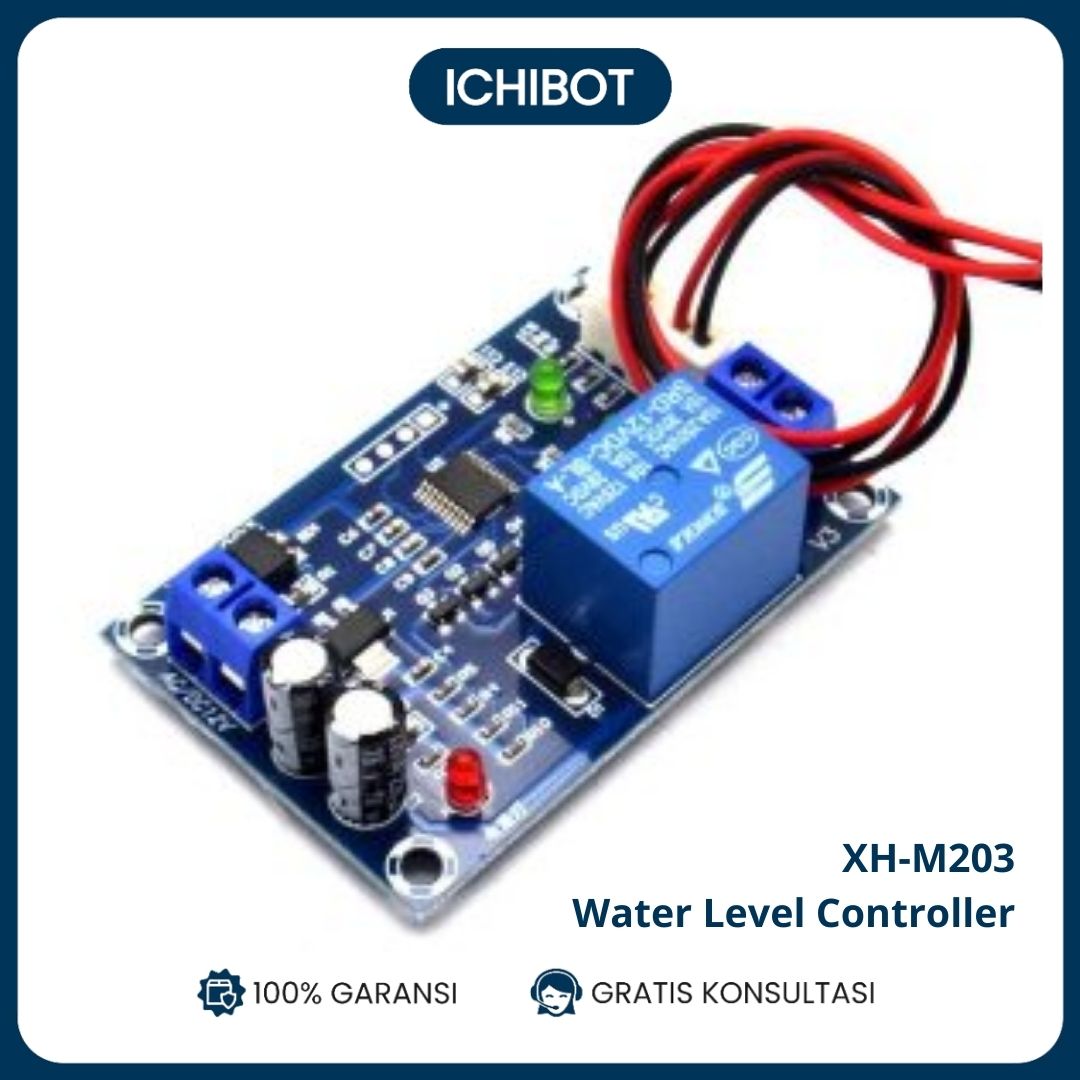

Key Features of XH-M203 Automatic Water Level Controller Switch Module
- Automatic water level detection: detects the water level in tanks or containers and activates/deactivates the pump accordingly.
- Relay output: features a relay for controlling high-power devices like pumps and valves
- Adjustable water level settings: allows users to set minimum and maximum water levels for optimal operation
- Efficient water management: helps conserve water by maintaining the proper water level, preventing overflow or dry runs
- Compact design: small size makes it east to integrate into existing systems or enclosures
- Overload protection: protects the connecter pump or system from damage caused by overcurrent or electrical faults
Technical Specifications of XH-M203 Automatic Water Level Controller Switch Module
- Operating voltage: 12V DC
- Relay output rating: 10A at 250V AC or 30V DC
- Detection range: o-10m (depending on the probe used)
- Current consumption: typically 20mA during operation
- Water level sensor type: capacitive or conductive sensor (depends on the model)
- Relay control: automatically activates/deactivates a connected pump or valve based on water level
- Dimensions: approximately 80mm x 60mm x 30mm
Mechanical Specifications of XH-M203 Automatic Water Level Controller Switch Module
- Dimensions: 80mm x 60mm x 30mm (L x W x H)
- Mounting holes: yes, designed for easy installation on surfaces or in enclosures
- Weight: approximately 60 grams
- PCB material: FR4 with clear silkscreen labels for easy identification
